Snow Retention Solutions for K&M’s Standing Seam Roofs

See the Snow Guards Compatibility Chart for K&M Standing Seam Metal Roofing Panels

K&M standing seam roof systems require snow guards and snow retention solutions compatible with the seam geometry and attachment method of each panel profile. Below are compatibility considerations and recommended SnoBlox-Snojax systems for K&M standing seam panels.

Mechanical Lock

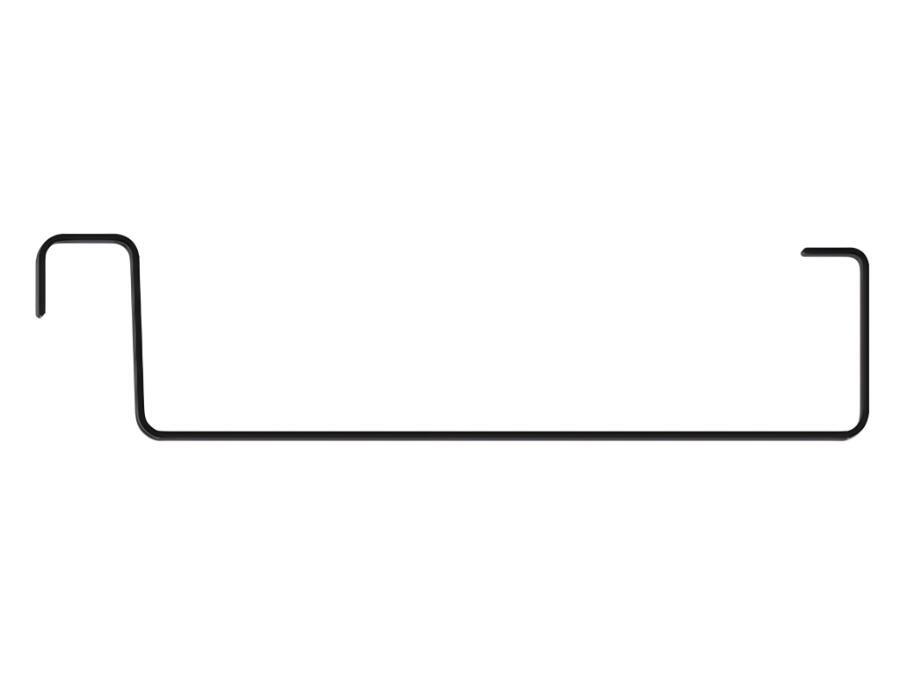

K&M's Mechanical Lock Standing Seam Panels are the company's classic and most widely used roofing option, available with 1-inch or 1.5-inch seam heights. Installers can choose single-lock or double-lock configurations. The double-lock seam has a long history of use in traditional metal roofing. They offer these panels in numerous materials, including copper, lead-coated copper, Freedom Gray, zinc, and Kynar-coated steel or aluminum. They produce these panels up to 27 inches wide and roughly 40 feet long for transport. Installers attach the system with concealed clips and can curve it for architectural designs. Optional stiffening ribs help reduce oil canning, though the exact rib spacing is not listed. See the Snow Guards Compatibility Chart for K&M Mechanical Lock Standing Seam Metal Roofing Panels.

This profile is compatible with a wide selection of our snow retention products.

Choose adhesive-mounted guards based on the project’s snow load, roof slope, roof run, panel dimensions, and full-roof layout. Follow the product’s adhesive application instructions, confirm finish compatibility, and ensure the guard base makes complete contact with a suitable bonding surface. Guard size alone does not establish whether a product meets the project’s requirements. The rib design also accommodates clamp-on systems, including SnoCleat RC, SnoCleat RCT, SnoBar, and ColorBar, using standard SnoBar clamps or RoofClamp hardware. Roofs made from softer metals, such as aluminum and copper, may require additional rail rows to compensate for reduced panel rigidity. Do not apply Surebond SB-190 directly to bare galvanized steel, bare Galvalume, copper, or lead surfaces. For painted panels, confirm finish compatibility before installation.

Snap Lock

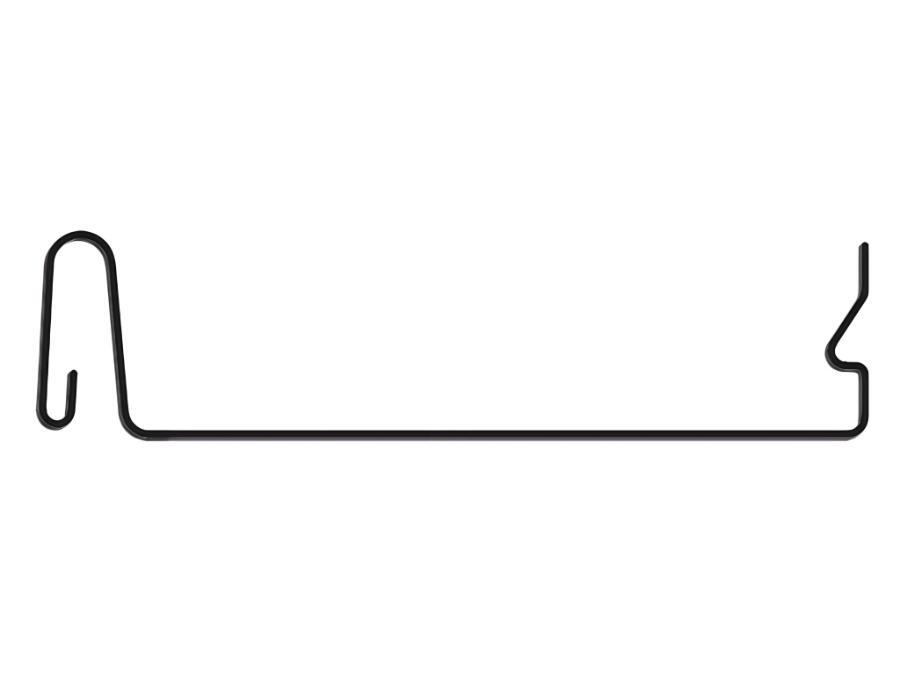

K&M's Snap Lock Standing Seam Panels are available in 1-inch or 1.5-inch seam heights. K&M engineered these panels to snap together without mechanical seaming, allowing for faster installation and making them more accessible for DIY applications. Installers use fixed or expansion cleats to manage thermal movement, but the panel profile prevents any curving. Because the system relies on material stiffness, they do not recommend softer metals such as copper. K&M manufactures these panels in widths up to 27 inches and lengths up to approximately 40 feet, subject to transportation arrangements. Stiffening ribs are available. See the Snow Guards Compatibility Chart for K&M Snap Lock Standing Seam Metal Roofing Panels.

This panel supports a wide range of our snow retention solutions. Choose adhesive-mounted guards based on the project’s snow load, roof slope, roof run, panel dimensions, and full-roof layout. Follow the product’s adhesive application instructions, confirm finish compatibility, and ensure the guard base makes complete contact with a suitable bonding surface. Guard size alone does not establish whether a product meets the project’s requirements. The rib profile also works with clamp-on systems, including SnoCleat RC, SnoCleat RCT, SnoBar, and ColorBar, which attach using standard SnoBar clamps or RoofClamp hardware. Softer metals, such as copper and aluminum, may require additional rail rows to maintain structural stability. Do not apply Surebond SB-190 directly to bare galvanized steel, bare Galvalume, copper, or lead surfaces. For painted panels, confirm finish compatibility before installation.

Nail Strip

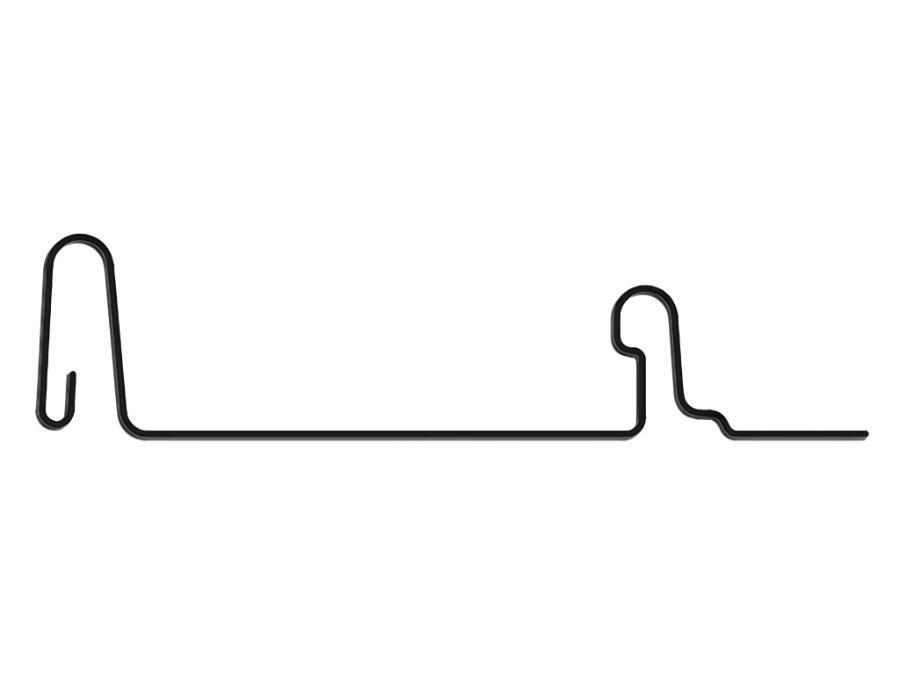

K&M's Nail Strip Standing Seam system is available in 1-inch and 1.5-inch seam heights. It functions similarly to Snap Lock but incorporates an integrated hidden nail strip. This feature eliminates the need for clips, further speeding up installation. The profile snaps together and is best suited for shorter panel runs where thermal expansion is less of a concern. Installers avoid softer metals such as copper because the system, like Snap Lock, relies on material rigidity for proper engagement. K&M produces panels in widths up to 27 inches and in long lengths, up to roughly 40 feet, for transport. Optional stiffening ribs are available. See the Snow Guards Compatibility Chart for K&M Nail Strip Standing Seam Metal Roofing Panels.

This panel is compatible with many of our snow retention systems. Choose adhesive-mounted guards based on the project’s snow load, roof slope, roof run, panel dimensions, and full-roof layout. Follow the product’s adhesive application instructions, confirm finish compatibility, and ensure the guard base makes complete contact with a suitable bonding surface. Guard size alone does not establish whether a product meets the project’s requirements. The rib geometry also works with our clamp-on systems, including SnoCleat RC, SnoCleat RCT, SnoBar, and ColorBar, using standard SnoBar clamps or RoofClamp hardware. When installed on softer metals like aluminum, additional rail rows may be required to ensure adequate stability. Do not apply Surebond SB-190 directly to bare galvanized steel, bare Galvalume, copper, or lead surfaces. For painted panels, confirm finish compatibility before installation.

U-Panel with Batten Cap or Strip

K&M offers the U‑Panel Standing Seam system with seam heights of 1‑inch or 1.5‑inch. Installers can pair it with heavy‑duty batten cleats to create a Batten Lock setup where a batten cap snaps over the cleat to form a taller architectural rib. K&M manufactures U-Panels in widths up to 27 inches and lengths up to approximately 40 feet, subject to transportation arrangements. Optional stiffening ribs help minimize oil canning. These panels are available in the full range of K&M materials, including copper, Freedom Gray, lead-coated copper, zinc, Kynar-coated aluminum, and Kynar-coated steel. See the Snow Guards Compatibility Chart for K&M U-Panel Standing Seam Metal Roofing.

The listed SnoCleat RC and RCT guards and SnoBar or ColorBar clamp-on rail systems do not fit the U-Panel batten cap or strip configuration. Adhesive-mounted options include EcoJax, IceJax I, IceJax II, SnoBlox Deuce, SnoBlox Ace, and SnoJax II where the roof material, finish, and mounting surface permit bonding. SnowBreaker provides an alternative for breaking up and dispersing sliding snow rather than retaining the snowpack. Do not apply Surebond SB-190 directly to bare galvanized steel, bare Galvalume, copper, or lead surfaces. For painted panels, confirm finish compatibility before installation.

Considerations for Adding Snow Guards to Standing Seam Roofs by K&M

Which snow-retention options work best for unusual roof shapes?

Roofs with steep slopes, curved sections, or other unconventional geometries often require snow-retention systems designed specifically for those configurations. Your roofing supplier can help determine which products are best suited for these specialized applications.

How can I confirm your snow guards fit my roof profile?

Choose snow guards that match the exact panel shape and material. Compatibility charts are an effective way to avoid mismatched components and ensure long-term system reliability.

Why should I test-fit sample snow guards before installation?

Our website allows customers to order individual sample guards, making it easy to test-fit them directly on the roof. This step helps confirm proper alignment and sizing while reducing installation errors. Always follow manufacturer instructions to maintain warranty coverage.

What snow-load requirements apply in my local area?

Confirm the applicable design snow load for your project, then provide that information to SnoBlox-Snojax along with the roof slope, roof run, panel profile, and panel spacing. These details determine product selection, spacing, and the number of rows.

How should I position snow guards around complex roof features?

Valleys, pitch transitions, and other architectural features can change snow accumulation and loading. Request a full-roof layout from SnoBlox-Snojax that accounts for these conditions before installation.

When is the right weather window for me to install adhesive-mounted guards?

Plan adhesive installation around a weather window that allows approximately 28 days at temperatures of at least 50°F for SB-190 to cure before exposure to a snow load. Colder temperatures extend the curing period. Follow the installation instructions for application and initial setting requirements. Do not apply SB-190 directly to bare galvanized steel, bare Galvalume, copper, or lead surfaces. For painted panels, confirm finish compatibility before installation.

Conclusion

From the earliest planning stages through final installation, our team provides clear, dependable support. Whether you contact us by phone, email, or through our website, you'll receive guidance tailored to your project so you can move forward with confidence. To make product selection easier, we offer a comprehensive Snow Guard Buyer's Guide and a Best Practices manual filled with expert insights. These resources help you avoid common pitfalls and approach your installation with clarity and assurance. By combining straightforward instructions, reliable products, and attentive customer service, we work to ensure your snow-retention system performs exactly as intended. We demonstrate our commitment to safety, integrity, and dependable support in every interaction.
