Snow Guards For Standing Seam Metal Roof Panels By Western States Metal Roofing

See the Snow Guards Compatibility Chart for Western States Metal Roofing Standing Seam Metal Roofing Panels.

Selecting snow guards for Western States Metal Roofing standing seam roofs requires attention to seam height, seam type, and clamp compatibility. This guide outlines recommended SnoBlox-Snojax snow guards and snow retention solutions for these panel systems.

MS2 Mechanically Seamed Profile

The MS2 Mechanically Seamed Panels are a versatile standing seam metal roofing option for commercial and residential projects. These panels, featuring a 2-inch seam height, are well-suited for low-slope applications. Typically crafted from 24-gauge metal with PVDF resin-based finishes, the MS2 panels come in standard widths of 12, 16, and 18 inches, with custom widths available up to 24 inches. Thanks to on-site roll-forming capabilities, they can be manufactured in lengths ranging from 1 to 52 feet. The panels utilize concealed fasteners to install over a solid substrate with underlayment, with a recommended minimum roof slope of 1/12. Known for their durability and performance, MS2 panels are available in various colors, including specialty paint prints that add depth and texture to the roofing system. The installation process, which often requires professional expertise, can incorporate single or double-lock seaming techniques, enhancing the roof's weather resistance and structural integrity. See the Snow Guards Compatibility Chart for Western States Metal Roofing MS2 Mechanically Seamed Standing Seam Metal Roofing Panels.

This roofing system accommodates a range of snow retention devices, particularly adhesive-mounted polycarbonate options. Correct adhesive application is essential to prevent issues like refreezing and separation, which can happen if moisture accumulates between the snow guards and roof panels. Clients can choose from various products, including larger options like IceJax II, Snojax II, and SnoBlox Ace, or more compact alternatives like the Deuce and IceJax I. For improved safety during managed snow and ice release, we suggest the SnowBreaker and SnowBreaker 3M. The panel's unique rib design allows for clamp-on snow guards and rail systems, including SnoCleat RC, SnoCleat RCT, SnoBar, and ColorBar. Installation typically involves standard stainless steel SnoBar clamps or aluminum RoofClamp alternatives, and we always advise test-fitting a clamp sample before finalizing an order.

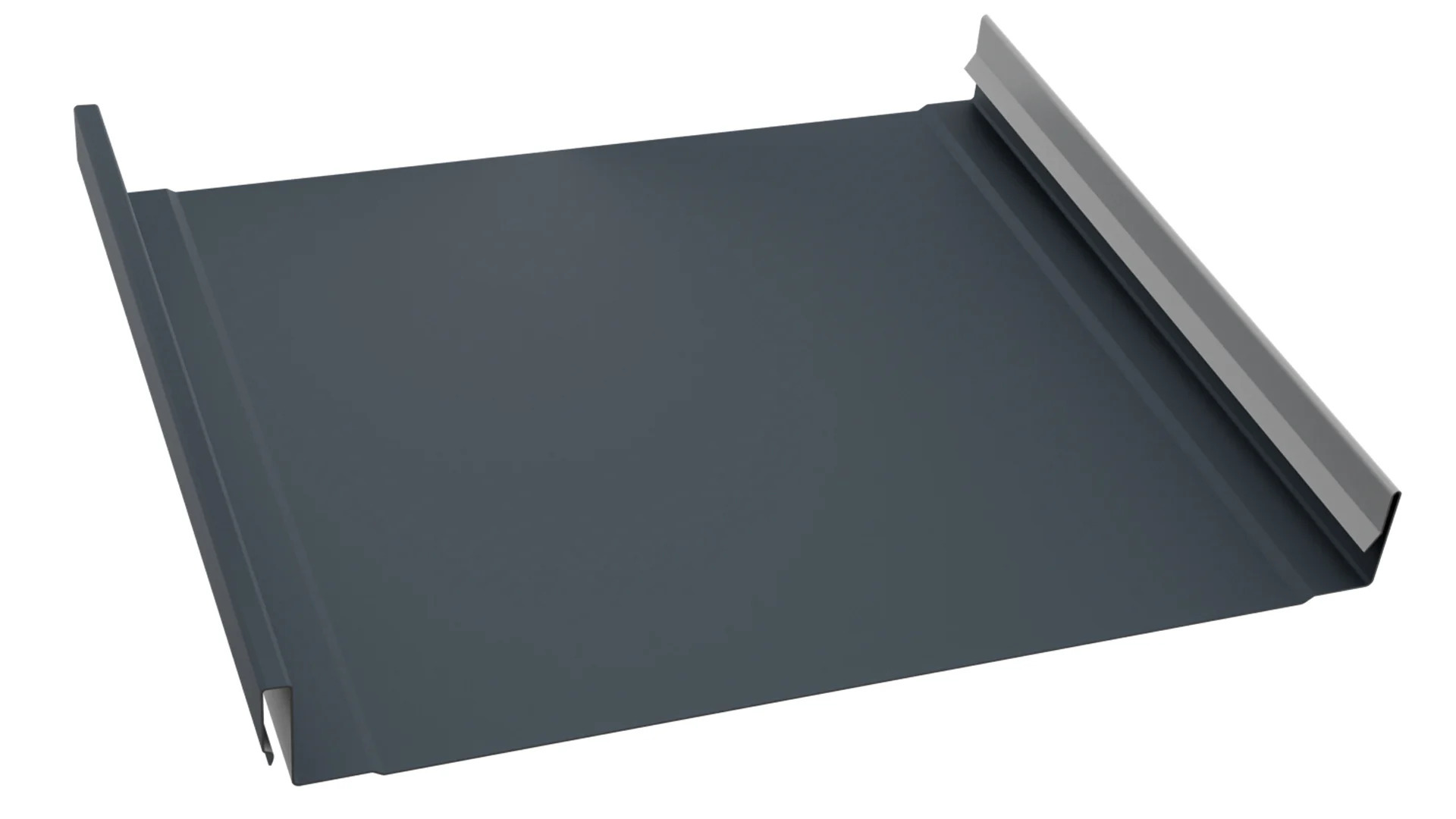

Western Lock Snap Lock Profile

Western Lock® Standing Seam Panels with Snap Lock technology are a versatile, high-performance roofing solution suitable for residential and commercial buildings. These panels feature a 1.75-inch rib height and come in standard 18-inch widths, with custom options available. Manufacturers craft these panels from Galvalume® or Zincalume® substrate and apply a PVDF resin-based paint finish, ensuring longevity and durability. The concealed fastener system, combined with a minimum recommended roof slope of 3/12, provides a weather-tight and visually appealing installation. Western Lock® panels have earned numerous certifications, including Class 4 impact resistance and Class A fire resistance, demonstrating their robust performance capabilities. Building owners can expect a lifespan of 40 to 60+ years with proper installation, minimal maintenance requirements, and potential energy savings through "Cool" paint system options. Western States Metal Roofing's direct-to-customer approach allows for cost-effective pricing. At the same time, their extensive color range and visualizer tool enable customers to explore various aesthetic possibilities for their roofing projects. See the Snow Guards Compatibility Chart for Western States Metal Roofing Western Lock Snap Lock Standing Seam Metal Roofing Panels.

This roofing solution suits various snow retention methods, especially adhesive-mounted polycarbonate components. Proper adhesive application is vital to avoid complications such as refreezing and detachment, which may arise if moisture gathers between the snow guards and roof panels. Consumers have multiple choices, ranging from larger units like IceJax II, Snojax II, and SnoBlox Ace to compact options like Deuce and IceJax I. To enhance safety during controlled snow and ice release, we recommend using the SnowBreaker and SnowBreaker 3M. The panel's distinctive rib design accommodates clamp-on snow guards and rail systems, including SnoCleat RC, SnoCleat RCT, SnoBar, and ColorBar. Installation generally involves standard stainless steel SnoBar clamps or aluminum RoofClamp alternatives, and we always suggest test-fitting a clamp sample before finalizing an order.

Western Seam 1 Inch Nailstrip Profile

The Western Seam 1 Inch Nailstrip Panels are a standing seam metal roofing designed for residential use by Western States Metal Roofing. These panels feature a 1-inch tall seam on 18" spacing and utilize a nail strip system that allows direct fastening to the roof deck, eliminating the need for clips. This design makes them one of the most economical and straightforward options for installation among standing seam systems, offering a cost advantage of approximately fifty cents per square foot compared to higher-performing alternatives like MS2® or Western Lock®. While they are easy to install, it is essential to recognize that the lack of clips may compromise some performance aspects. Typically, manufacturers design standing seam metal roofing for durability, expecting it to last over 40 years. Additionally, these panels present a sleek, contemporary aesthetic with flat sections between the raised seams. They are available in various colors and finishes, including specialty paint options that add depth and texture. See the Snow Guards Compatibility Chart for Western States Metal Roofing Western Seam 1 Inch Nailstrip Standing Seam Metal Roofing Panels.

The roofing system described above is adaptable to various snow retention solutions, particularly those using adhesive-mounted polycarbonate elements. Accurate adhesive application is critical to prevent refreezing and separation, which can occur if moisture accumulates between the snow guards and roof panels. Users have several options, including larger products like IceJax II, Snojax II, and SnoBlox Ace, as well as more compact alternatives such as the Deuce and IceJax I. Use the SnowBreaker and SnowBreaker 3M to enhance safety during managed snow and ice release. The panel's unique rib design permits clamp-on snow guards and rail systems like SnoCleat RC, SnoCleat RCT, SnoBar, and ColorBar. Typically, you should use standard stainless steel SnoBar clamps or aluminum RoofClamp alternatives for installation, and we always recommend testing a clamp sample before finalizing your order.

Western Seam 1.5 Inch Nailstrip Profile

The Western Seam 1.5" Nailstrip panel is an enhanced version of its 1" counterpart, boasting a taller seam height. This snap lock system simplifies installation by eliminating the need for clips and relying on screws instead. While it offers quicker and easier installation, its performance falls short compared to clip systems such as MS2 or Western Lock® panels. Available in standard 18" widths, with custom options ranging from 12" to 20", this panel system provides a budget-friendly solution for projects prioritizing straightforward installation and a sleek aesthetic. However, it's worth noting that the ease of installation comes at the cost of slightly reduced performance compared to more advanced systems. See the Snow Guards Compatibility Chart for Western States Metal Roofing Western Seam 1.5 Inch Nailstrip Standing Seam Metal Roofing Panels.

This roofing solution is compatible with various snow retention methods, especially those employing adhesive-mounted polycarbonate components. Precise adhesive application is crucial to avoid problems like refreezing and detachment, which may happen if moisture collects between the snow guards and roof panels. Customers can select from multiple options, including larger units like IceJax II, Snojax II, and SnoBlox Ace, or more compact alternatives like the Deuce and IceJax I. To enhance safety during controlled snow and ice release, we suggest using the SnowBreaker and SnowBreaker 3M. The panel's distinctive rib design allows for clamp-on snow guards and rail systems, including SnoCleat RC, SnoCleat RCT, SnoBar, and ColorBar. Typically, you should use standard stainless steel SnoBar clamps or aluminum RoofClamp alternatives for installation, and it's always advisable to test-fit a clamp sample before finalizing your order.

Considerations for Adding Snow Guards to Standing Seam Roofs by Western States Metal Roofing

Think About Ice Management

If you live in an area where ice is a problem, consider adding special ice prevention features called IceStoppers to your retention system. Choosing and placing these components correctly is vital for them to work well, especially on roofs with taller seams.

Match Your Roof's Style

Look for snow retention solutions that fit your roof's style. Consider personalized options like color-matched powder-coated components or custom color strips for metal guards and rails. If you're in a hurry, check out local powder coaters or painters, who might have quicker options for custom work.

Know Your Local Snow Load

Check out the snow load statistics for your area to help you choose the right system. If you live in an area with a ground snow load of 45 psf or less, you can equip either individual snow guards or snow rails. Suppose you live in an area with heavy snowfall and a ground snow load greater than 45 psf. In that case, you must stick exclusively with sturdier rail systems.

Keep Your Roof Strong

Choose mounting methods that keep your roof structurally sound, especially if you have standing seam metal roofing. Go for non-penetrating clamp-on or glue-down systems to keep the weatherproofing intact and maintain your warranty.

Plan An Effective Layout

Design a layout that protects the entire roof surface, using multiple rows if needed. Spread out the retention elements evenly to avoid putting too much stress on any one isolated spot. Remember to use our spacing guidelines and quote request forms in our resources section to help you get it right.

Check for Compatibility

Before you install, test fit the system parts on your specific roof type. This step is essential to avoid expensive mistakes and ensure everything fits together smoothly. We have most individual components for our various systems available online separately.

Pick the Right Time to Install

If you use adhesive-mounted systems, schedule the installation for warmer months, like late spring or early summer. Ensure you allow enough curing time based on the temperature to get the best adhesion. Most industry-standard adhesives, like Surebond SB-190, need a few weeks at moderate temperatures to bond completely.

Conclusion
