Economical 6 Foot SnoBar and ColorBar Snow Rail Kits

See Now
2 Bar ColorBar Top View
(No reviews yet) Write a Review
SnoBar-ColorBar
SKU: CB2B-Mill-6FT-12-1

2 Bar ColorBar Mill Aluminum Snow Rails for Standing Seam Metal Roofs (6 Foot)

$281.00
  • Availability: In Stock
  • For Panel Type: Standing Seam Metal Roof With Concealed Fastener
  • Includes: Bars, Clamps and Installation Hardware
  • Shipping Charges: Enter City, Zip Code and State at Checkout to View Shipping Charges
  • Processing Time: Same or Next Day (Mon-Fri)
Adding to cart… The item has been added

RCT Seam Profile Compatibility

Heavy-duty Aluminum Snow Rail Bar System Featuring Two Structural Aluminum ColorBars

Double bar ColorBar snow rail systems are securely attached to a standing seam panel using the patented aluminum RCT RoofClamp and stainless steel set screws. The structural dual ColorBars feature three supports in each bar instead of just one. The Two Bar ColorBar bracket features top-loading upper and lower bar channels for fast installation. Two grooves in the face of the bar can accept optional 2-inch metal color strips. The bars, brackets, and clamps can also be powder-coated to match the panel. The two-bar ColorBar double snow bar system accommodates about 95 percent of the industry's sloped standing seam roof panels.

ColorBar Comparison

Continuous Standing Seam Metal Roof Snow Retention System

This continuous structural aluminum double bar joins together with the included aluminum splice connector. The double bar runs the entire roof length in a nice, clean line.

Double Bar ColorBar Snow Rails are Safe for Concealed Fastener Metal Roofs

The ColorBar double snow bar system is a safety product that helps prevent rooftop snow and ice avalanches that can cause personal injury and damage to gutters, landscaping, HVAC units, cars, and lower roof areas. This product is ideal for standing seam metal roofs. It features a one-piece aluminum clamp with three non-penetrating, cup-tipped set screws. Unlike other systems, our roof clamps do not require the bar to pass through the clamps to install. The double ColorBar easily top-loads onto the double bar bracket for easy installation. The set screws only need 90 inch-pounds of torque, which is nearly half of what other manufacturers recommend.

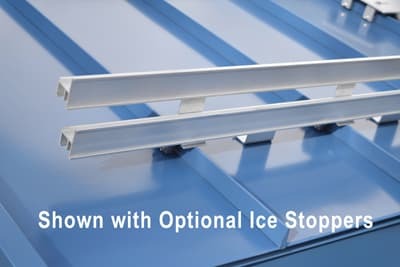

Two Bar ColorBar With Optional IceStopper Two Bar ColorBar With Optional IceStopper

Continuous Standing Seam Metal Roof Snow Retention System

This continuous structural aluminum double bar joins together with the included aluminum splice connector. The double bar runs the entire roof length in a nice, clean line.

Two Bar ColorBar Snow Rails Use Low Torque Set Screws

The standing seam roof clamps feature three "cup-tipped" stainless steel screws, not one or two slippery "round nose" screws. Because our set screws are cup tipped, they do not require a high torque setting like competing products. Our set screws have been proven in the field in the SnoBar® clamps for over 30 years and will not void the manufacturer's warranty.

Fast and Easy Installation

Exclusive low-torque roof clamps combined with top-loading brackets make this the fastest bar system in the industry to install. Fewer parts result in less labor during installation!

Double Bar ColorBar Snow Rails Features:

  • Year-Round Installation

  • Both Bars Top Load For Easy installation

  • High-Grade Mill 6061 T-6 Aluminum

  • Accepts a Two-Inch Color Strip in The Face of The Bar

  • Powder Coated Option to Match the Roof is Available

Two Bar ColorBar Includes Custom Design Options

We will provide a free custom design and quote for your SnoBar system. To begin the process, submit the Quote Request Form or call us at 1-800-SNOJAX-1 (800-766-5291) with any questions. Sample Bar Kits for submittal purposes are available for purchase.

Two ColorBar Submittal Documents:

Double Bar Standing Seam ColorBar Important Disclaimer:

Do not install this snow retention system on isolated roof areas, just over doorways, stack pipes, chimneys, or partial roof sections. Upper roofs, if any, must not be allowed to shed snow and ice onto lower roof areas with snow bars. Before using this product on lower roof areas, all upper roof areas must have a snow retention system. Never install a snow bar system beyond where the end wall and overhang connect. Always obtain a manufacturer's quantity and spacing recommendation before purchasing and installing this product. The installer of this system must carefully follow the manufacturer's installation and spacing recommendations. Not following the manufacturer's spacing and installation recommendations may result in severe roof panel damage, personal injury, or even death.

The following warranty is made in lieu of all other warranties expressed or implied. Recommendations for proper use of the product are based on tests believed to be reliable. Any goods proven to be defective due to materials will be replaced, or purchase price refunded, but in no event shall the manufacturer be responsible for damages in excess of the purchase price. User shall determine the suitability of the product for its intended use and assumes all risks of its use or handling. 1. All loads incurred by the SnoBar will be transferred to the panels. Therefore, proper panel attachment to substrate/structure is necessary to prevent roof panels from sliding under snow load. New and existing structures must be evaluated to insure they can withstand retained snow loads. (In instances where there is an overhang at the eave edge, it is imperative to make sure that the overhang can hold the accumulated loading, otherwise the first row of SnoBar should occur at the bearing wall.) 2. It is not recommended to place the SnoBar System in isolated areas such as doorways, vents and partial roof areas. Please call for special design considerations in those areas. 3. Consider whether your roof system and/or substrates (felts or membranes) run the risk of ice damming with the addition of this type of system. 4. The SnoBar Clamp System requires the roof panel to be a min. of 24 GA. steel and have a seam height of at least 1". Clamp spacing cannot exceed 24"O.C. Clamp spacing varies dependign on seam spacing (12" o.c. up to 42" o.c). Clamps should be placed at every seam, so that the load is distributed evenly to every roof panel. It is not recommended to use a clamp type system when the roof uses a seperate seam cover or batten. 5. The U-Bracket System requires a purlin or structural support beneath it to mount to. 6. No snow retention system is capable of retaining 100% of snow and ice from falling off the roof. 7. Designer/Arhitect, Installer, or Owner of the project should have knowledge of the local snow loads, climatic conditions, roof slope, roof orientation, and roof design prior to installing SnoBar. 8. After considering the above factors, the determine lineal feet of SnoBar required is based on length of panels, roof slope, snow loading and areas needing protection from falling snow. (Call SnoBlox-SnoJax for clamp and bar loading values.) 9. It is the sole responsibility fo the Designer/Architect, Installer, or Owner to assess the suitability of using the SnoBar System based on the above design considerations. SnoBlox-SnoJax or any or its subsidiaries, or Riddell & Company, Inc and Action Manufacturing are under no liability if failure occurs from improper installation, improper set screw torque, improper panel attachment, improper roof system installation, improper use of the SnoBar system or under designed system placement of the SnoBar system. This is a special-order item, thus All Sales are Final. Sorry, no returns accepted.
SnoBar 2-Bar Snow Retention System for Metal Roofs

About SnoBar-ColorBar

In 1992, Don Drew and Dick Riddell invented SnoBar, the original standing seam-mounted snow rail, earning a patent the following year. The first version, Sno Horse, was installed by Jim Huff at Denver International Airport in 1992. Inspired by office desk name plates, he ingeniously created an aluminum bar with a channel that could accept a strip of colored metal in its face. This design evolved into ColorBar, featuring rapid installation with patented drop-in clamps. Roof clamps, available in stainless steel or aluminum, secure the bar to standing seam metal roofs, making SnoBar the longest-standing snow rail system. There is a SnoBar and ColorBar snow retention system for every sloped roof prone to snow slides. Both snow rails can be powder-coated to match your metal roof.

!
