SnowBreaker 3M Snow Guard Key Features
-
Made in America
-
Easy to install
-
Most Versatile Snow Guard Available!
-
It can be installed with screws, adhesive, or tape
-
Safely breaks apart sliding snow and ice!
The SnowBreakers are snow splitter snow guards for metal roofs.
Rather than hold the snow and ice on the roof, this product breaks it up so it can shed from the roof in smaller pieces, thus minimizing the danger. This is the best of both worlds because the snow and ice can shed the roof faster than conventional snow retention while providing a level of safety protection.
SnowBreaker 3M Snow Guard is Versatile
The SnowBreaker can be installed on both types of roofs:
Screw-Down Roof with Exposed Fasteners:
You can simply use the screw-down version of the SnowBreaker that fastens down into a purlin or structural support below.
Standing Seam Roof:
You can elect to install the SnowBreaker with the SB-190 adhesive version, temperature permitting or 3m tape option as a temporary solution when temperature requirements can not be met for the SB-190. (3M tape option will still require a bead of SB-190 around the perimeter for extra protection and should not be used when ground snow loads exceed 25 PSF. One tube of SB-190 is included with every 50 SnowBreaker 3M guards) Smaller order quantities have the price of the SB-190 perimeter sealer built in the price per guard.
SnowBreaker 3M Snow Guard is Safe for You and Your Roof
The SnowBreaker is very effective in preventing damage caused by the sudden release of snow and ice, all with less worries of overloading your roof. No other snow guard can make this claim! As the snow and ice slide on the roof, this cost-effective product minimizes the danger by slicing the frozen precipitation into small pieces so it can safely come off the roof.
SnowBreaker 3M Snow Guard Wintertime Application
Because of the cutting edge design, it is not conducive to receiving a significant sheer load so there is a peel and stick version for installation in cooler weather. The 3m tape requires a minimum temperature of 50 degrees Fahrenheit for at least 72 hours and should only be considered a temporary attachment solution. The 3M tape was professionally tested to have an average holding strength of 234 pounds of shear strength before releasing from the panel.
SnowBreaker 3M Snow Guard: The Solution for Isolated Areas and Doorways
In theory, a snow guard can not hold snow and ice in an isolated area on a roof because the load of the frozen mass will extend to the unprotected area. This severely overloads the snow retention system and will cause premature release and eventual failure. The SnowBreaker is not designed to hold snow for very long, so this theory can be modified by placing the SnowBreaker in a 45-degree outward angle over the desired isolated area to protect. This is a huge cost savings over conventional snow guard systems that require the entire roof area to have snow retention just to protect isolated areas. Please see the Isolated Placement Guide for guidelines on isolated areas.
SnowBreaker 3M Snow Guard: What's Included

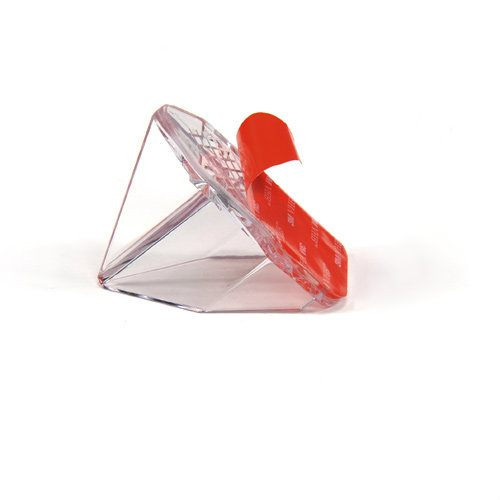

The 3M SnowBreaker comes with pre-attached tape and one tube of SureBond SB-190 per 50 SnowBreaker 3M's. This is used to apply a bead of adhesive around the entire perimeter. The minimum order is 25.
SnowBreaker 3M Snow Guard Submittal Documents
-
Well made
Easy to install and 3M fastening tape was awesome! Very pleased with product!
About SnoBlox-Snojax
In the late 1970s, we sought a better snow guard that would be non-corrosive and almost invisible but not detract from the building's appearance. After years of testing for our new idea, we were awarded a patent on the world's first screw-down clear, non-corrosive, polycarbonate snow guard called Snojax®. In 2000, we introduced two uniquely designed patented SnoBlox® models, the "Ace" and the "Deuce." We created these models to offer the industry an economical solution to eliminate the confusion associated with straddling minor ribs. The SnoBlox® models also feature the industry's first patented waffled base design that enhances the bonding power of the adhesive. In 2005, we introduced two different-size models, the Icejax I and the Icejax II. We hired the internationally renowned ATI professional testing laboratory to test our snow guard models. These tests proved that the Snojax®, SnoBlox®, Icejax™, and SnowCatcher™ brands are the industry's most robust snow guards!
