SnowCatcher Mill Finish

Name: SnowCatcher Mill Finish
Brand: SnoBlox-Snojax
SKU: SSSC-MILL-NO
Price: 4.5 USD
Availability: InStock
Rating: 5 (9 reviews)

SnoBlox-Snojax

$4.50

(9 reviews) Write a Review

SKU:: SSSC-MILL-NO
UPC:
Availability:: In Stock
For Panel Type:: Mechanically Fastened R-Panel 9" to 12" Flats
Processing Time:: Same or Next Day (Mon-Fri)

Current Stock:

Quantity:

Adding to cart… The item has been added

Description
Warranty Information
9 Reviews

Stainless Steel SnowCatcher Snow Guards

Made in America, with American Stainless Steel
A flat, forward-facing design is proven to cause less roof stress, failures, and leaks than other competing options.
Come with a foam base pad; no silicone or messy sealants are necessary.
Easy installation

SnowCatcher Dimensions SnowCatcher With Foam Pad

Stainless Steel SnowCatcher Snow Guards Details:

The Mill SnowCatcher is a 16 gauge metal snow guard that is constructed from 304-grade stainless steel and is available in TGIC Polyester powder-coated colors for a small upcharge. The large forward-mounted 4” Wide face provides a generous holding field, and the 1.5” wide base fits most 36” panels with 9” flats. A 1/16" thick adhesive-backed V742 CCF PVC foam sealer base pad is included. The SnowCatcher requires 2 screws per guard, the third hole can be used for an extra screw, but it is intended as a holding point for powder coating.

Stainless Steel SnowCatcher Snow Guards Testing:

Professional third-party Intertek/ATI tests demonstrate the SnowCatcher held 3923 pounds when attached with #14 screws. The durable construction does not get brittle like cheap guards made from metal castings.

Stainless Steel SnowCatcher Snow Guards Application:

The Snow Catcher is for screw-down applications only, and adhesive mounting of this guard is not recommended. Snow Guards used in just isolated roof areas such as chimneys, doorways, vents and partial roof sections is not recommended. Three screws per guard can be used, but only two screws are required. Screws are sold separately.

Please refer to the spacing guideline page for proper snow guard placement.

Stainless Steel SnowCatcher Snow Guards Submittal Documents

The following warranty is made in lieu of all other warranties expressed or implied. Recommendations for proper use of the product are based on tests believed to be reliable. Any goods proven to be defective due to materials will be replaced, or purchase price refunded, but in no event shall the manufacturer be responsible for damages in excess of the purchase price. User shall determine the suitability of the product for its intended use and assumes all risks of its use or handling.

9 Reviews Hide Reviews Show Reviews

5
Sturdy

Posted by Laurie on Nov 20th 2023

I have purchased the snowcatcher a few times for different roofing projects. The first ones have been on the roof for 13 years as of 2023. Very durable product.
5
These are very nice snow catchers. You can't do any better.

Posted by petermartyn@rocketmail.com on Nov 18th 2022

I bought these snowcatchers for my second choice since the company said that I need heavier gauge roofing panels to accommodate their snow rails. I didn't have time for that since the first snowfall was coming right up and as far as I could tell my light gauge garage roofing panels should be safe and sound in the particular case anyway. I quickly put in sixteen of these very nice catchers just in time and so far they are working like a gem. If they keep the snow on the roof all winter then I'm going to count them as a very big bargain.
5
Sno catcher

Posted by Tim Haynie on May 23rd 2022

Excellent product.
5
Worked great

Posted by whitetruck0314@gmail.com on Jan 26th 2021

Great product easy to install and good price. Will buy again.
5
Worked great

Posted by Kevin Place on Jan 20th 2021

Well built snow guard very sturdy product and good price. Will keep buying this style.
5
Worked great

Posted by whitetruck0314@gmail.com on Nov 11th 2020

Good quality product easy to install and look good and good price.
5
Snowcatcher Mill Finish

Posted by Mike on Oct 29th 2020

Well made SnowCatcher. Highly recommended
4
We would have given these a five star rating if it were not for the self tapping screws.

Posted by Mike on Aug 16th 2020

We found the self tapping screws should have a sharper tip. While working on a steep metal roof we had a hard time getting them to penetrate the metal roofing.
5
Snowcathcher mill finish

Posted by Tad Westveer on Dec 4th 2019

exactly as advertized, easy to install.

Stainless Steel SnowCatcher Snow Guards Frequently Asked Questions (FAQs)

The SnowCatcher is constructed from 16 gauge 304-grade stainless steel. It is manufactured right here in the United States of America with American steel. We take pride in offering “Made in U.S.A” products, unlike the competition that often sources its materials and manufacturers from overseas as a way to cut costs. The SnowCatcher is a single-piece snow guard.

Three pre-drilled holes are included in the base of the SnowCatcher snow guard. Installation calls for the use of the two holes close to the guard's face. The guard is primarily hung in the third hole at the opposite end of the base during the optional powder coating process. Another use for this third hole is as an additional mounting point for increased strength.

If a snow guard system is installed correctly, roof leaks shouldn't occur. Be sure to use screws with neoprene washers in conjunction with the included foam gaskets for our metal snow guards. Many customers choose to not add any additional roof penetrations for snow protection. Many customers choose to seal around the perimeter of the guard with NovaFlex MR150 silicone sealant as an additional precaution against moisture creeping under the SnowCatcher.

NO! NEVER use snow rail systems or snow guards as stepping points or tie-off points for fall protection. If you need a quick and reliable fall protection alternative, we advise using the RidgePro.

NO! No matter the snow retention method used, isolated installations are never recommended. Using our spacing guideline pages is recommended before buying snow guards. One of the most important factors to take into account when designing a system for your project is the weight distribution of roof snow and ice across the entire structure. A significant risk of failure exists with isolated installations, which could damage the roof's panels and structure in addition to the guards themselves.

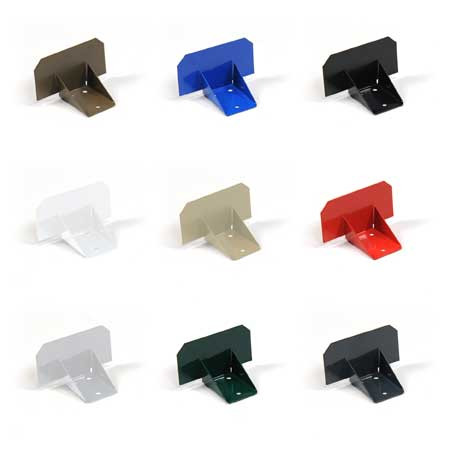

Yes. Powder coating can be used to match the color of the stainless steel SnowCatcher. When a custom quote is needed for a bespoke color match, a physical sample must be supplied to us. Once a match is found, the quote can be created. Orders for powder coating typically have a 3-4 week production lead time. Colored SnowCatchers are not kept in stock. Customers can order the SnowCatchers in mill finish and either spray paint them or have them powder coated locally if they'd like a quicker option.
