Metal Snow Retention Solutions for Sheffield Metals Standing Seam Roofs

See the Snow Guards Compatibility Chart for Sheffield Metals Standing Seam Metal Roofing Panels.

Which snow guard systems are best suited for Sheffield Metals’s standing seam panels?

Choosing the right snow retention system for Sheffield Metals's standing seam panels starts with understanding how these roofs behave under winter conditions.

Their smooth surface and hidden fasteners allow snow and ice to slide off in large sheets, which can lead to sudden roof avalanches. These events can damage gutters, harm landscaping, or create hazards for people and pets below. Snow guards and rail systems help manage this movement. Contractors must match them to the exact seam profile and attachment style to work correctly. Because standing seam roofs depend on profile-specific components, selecting compatible products is essential for long-term performance. This blog outlines the snow retention solutions that pair well with Sheffield Metals's standing seam systems so you can make an informed choice for your project.

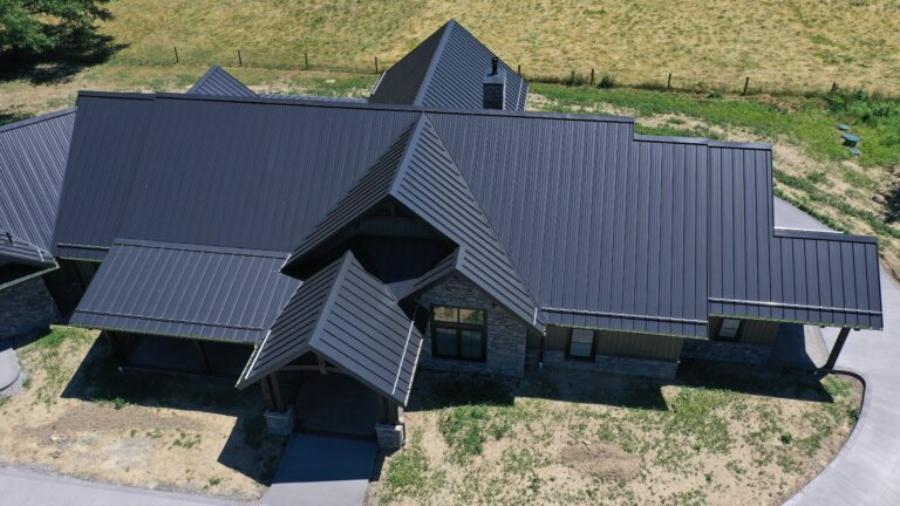

About Sheffield Metals

Sheffield Metals has been a major supplier in the North American metal roofing industry since 1986. With five facilities across the United States and Canada, the company supports projects ranging from small residential jobs to large commercial builds. Their acquisition by Mazzella Companies in 2004 expanded their reach and strengthened their focus on engineered standing seam systems. Today, Sheffield Metals produces durable, high-performing panels backed by technical expertise and reliable engineering support. Contractors, architects, and building owners trust these systems for their structural strength, clean appearance, and compliance with strict certification requirements across residential, commercial, and industrial applications.

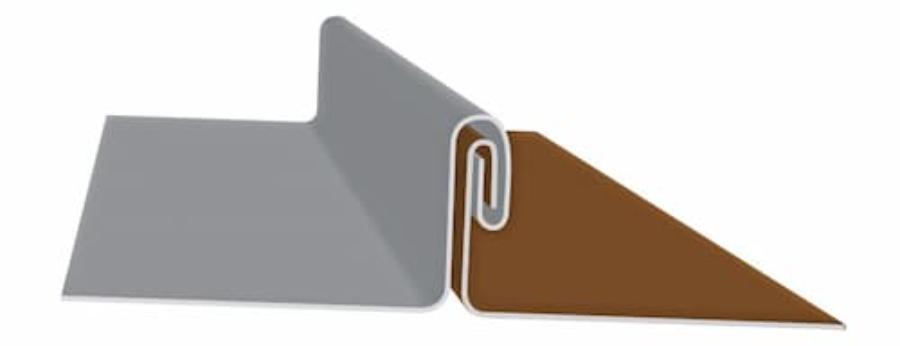

SMI 1.0 Mechanical Seam Panel

The SMI 1.0 MS panel is a mechanically seamed profile designed for durability, versatility, and a crisp architectural look. Available in 22-gauge or 24-gauge steel or aluminum, it features a 17-inch finished width and a 1-inch vertical rib. It is suitable for residential and commercial roofs with slopes of 3:12 or greater. It meets UL 580, UL 1897, and UL 90 uplift standards, as well as Florida Building Code approval for non-HVHZ installations. See the Snow Guards Compatibility Chart for Sheffield Metals SMI 1.0 Mechanical Standing Seam Metal Roofing Panels.

This profile works with a wide range of our snow retention products. Fully adhered polycarbonate guards perform well and help prevent moisture from collecting beneath the base. For heavy snow regions, larger guards such as IceJax II, Snojax II, and SnoBlox Ace offer increased strength. In areas with lighter snowfall, smaller options like the SnoBlox Deuce, EcoJax, and IceJax I are appropriate. For controlled shedding, SnowBreaker and SnowBreaker 3M are effective. The seam also accepts clamp-on systems, including SnoCleat RC, SnoCleat RCT, SnoBar, and ColorBar, using standard SnoBar clamps or RoofClamp hardware. Aluminum roofs may require additional rail rows to evenly distribute loads.

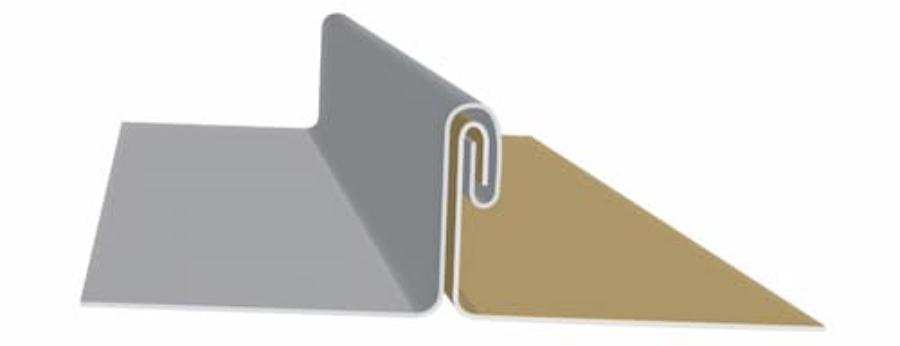

SMI 1.5 Mechanical Seam Panel

The SMI 1.5 MS panel features a 1.5-inch mechanical seam and a consistent 16-inch width, available in 22-gauge or 24-gauge steel or aluminum. Its strength and adaptability make it a popular choice for both residential and commercial applications. See the Snow Guards Compatibility Chart for Sheffield Metals SMI 1.5 Mechanical Standing Seam Metal Roofing Panels.

This profile supports a wide range of our snow retention solutions. Fully adhered polycarbonate guards provide reliable performance and help prevent moisture buildup. For heavier snow loads, larger guards like IceJax II, Snojax II, and SnoBlox Ace offer stronger retention. In moderate or light snow areas, smaller models such as the SnoBlox Deuce, EcoJax, and IceJax I are suitable. When controlled release is preferred, we recommend SnowBreaker and SnowBreaker 3M. The seam design also works with clamp-on systems, including SnoCleat RC, SnoCleat RCT, SnoBar, and ColorBar, using standard SnoBar clamps or RoofClamp hardware. Aluminum roofing may require additional rail rows to ensure proper load distribution.

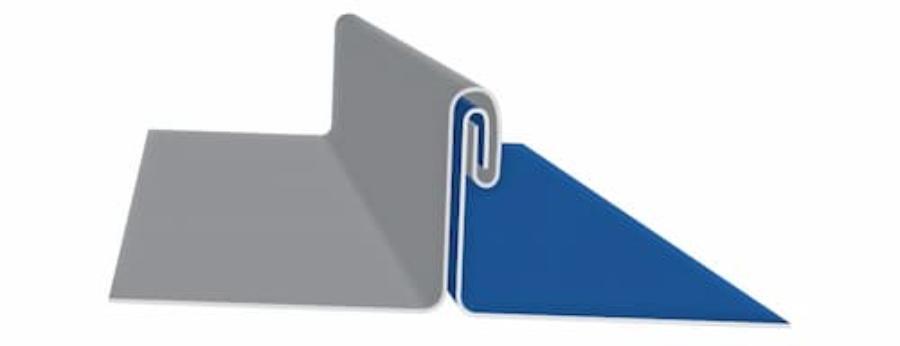

SMI 2.0 Mechanical Seam Panel

The SMI 2.0 MS panel uses a 2-inch mechanical seam that provides the strength needed for more demanding architectural designs. Steel versions measure 18 inches wide, while aluminum versions are 16 inches wide to maintain rigidity. Available in 22-gauge and 24-gauge steel or 0.040 aluminum, this profile installs on slopes of 2:12 or greater and carries UL 580, UL 1897, and UL 90 uplift approvals. See the Snow Guards Compatibility Chart for Sheffield Metals SMI 2.0 Mechanical Standing Seam Metal Roofing Panels.

This panel is compatible with a wide range of our snow guard systems. Fully adhered polycarbonate guards offer dependable performance and help prevent moisture from forming beneath the base. In high-snow regions, larger guards such as IceJax II, Snojax II, and SnoBlox Ace provide greater holding power. In lighter climates, smaller guards like the SnoBlox Deuce, EcoJax, and IceJax I are typically sufficient. For controlled shedding, SnowBreaker and SnowBreaker 3M are strong options. The seam also supports clamp-on systems, including SnoCleat RC, SnoCleat RCT, SnoBar, and ColorBar, using standard SnoBar clamps or RoofClamp hardware. Aluminum panels may require additional rail rows to maintain even load distribution.

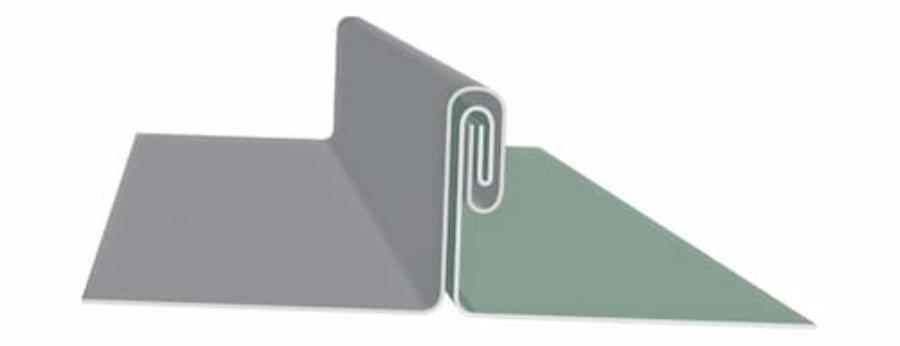

SMI 2.0 MS Armco Panel

The SMI 2.0 MS Armco panel offers a durable mechanical seam profile built for long-term performance. It features a 2-inch seam height and a standard 16-inch width, available in 22-gauge and 24-gauge steel. With a minimum slope requirement of 2:12, it sheds water effectively and provides a strong structural base. See the Snow Guards Compatibility Chart for Sheffield Metals SMI 2.0 MS Armco Standing Seam Metal Roofing Panels.

This profile is compatible with many of our snow retention products. Fully adhered polycarbonate guards perform well and help prevent moisture from collecting under the base. For heavy snow regions, larger guards such as IceJax II, Snojax II, and SnoBlox Ace offer enhanced strength. In lighter snow areas, smaller options like the SnoBlox Deuce, EcoJax, and IceJax I are appropriate. For controlled shedding, SnowBreaker and SnowBreaker 3M are ideal. The seam also works with clamp-on systems, including SnoCleat RC, SnoCleat RCT, SnoBar, and ColorBar, using standard SnoBar clamps or RoofClamp hardware. Aluminum roofing may require additional rail rows to properly distribute loads.

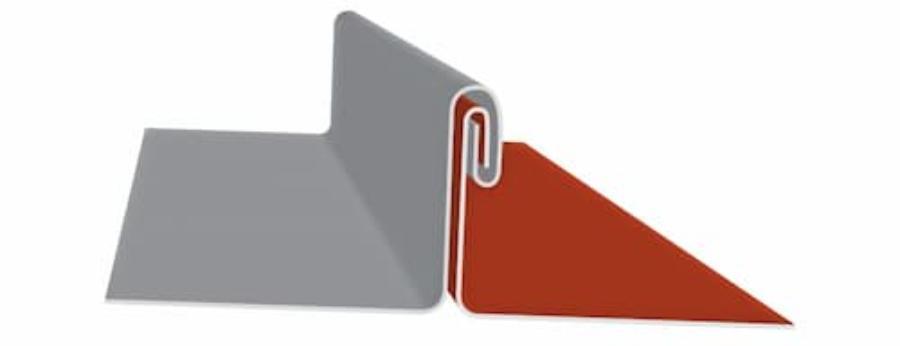

SMI 2.0 SCH Mechanical Seam Panel

The SMI 2.0 SCH MS panel brings a unique profile to the Sheffield Metals lineup, with an 18 3/4-inch width and a 1 13/16-inch seam height. Available in 22-gauge and 24-gauge steel, it installs on slopes as low as 2:12. Its sturdy steel construction and tightly sealed mechanical seam help maintain a weather-tight finish for many years. See the Snow Guards Compatibility Chart for Sheffield Metals SMI 2.0 SCH Standing Seam Metal Roofing Panels.

This profile supports a wide range of our snow retention systems. Fully adhered polycarbonate guards provide reliable performance and help prevent moisture from gathering beneath the base. For heavier snow loads, larger guards such as IceJax II, Snojax II, and SnoBlox Ace offer superior holding strength. In moderate or light snow regions, smaller options like the SnoBlox Deuce, EcoJax, and IceJax I are well-suited. For controlled shedding, we recommend SnowBreaker and SnowBreaker 3M. The seam also accommodates clamp-on systems, including SnoCleat RC, SnoCleat RCT, SnoBar, and ColorBar, using standard SnoBar clamps or RoofClamp hardware. Aluminum panels may need additional rail rows to ensure proper load distribution.

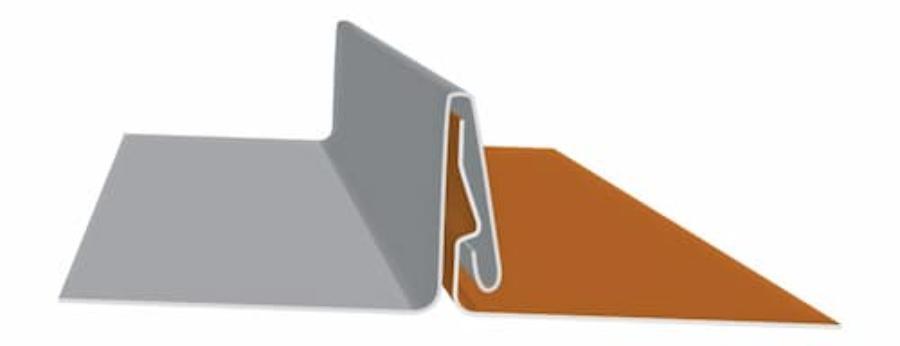

SMI 1.5 SnapLock 450+ Panel

The SMI 1.5 SL 450+ panel offers a quick, reliable installation option for roofs with moderate or steep slopes. Produced in 22-gauge and 24-gauge steel, it features a 1.5-inch seam height and a uniform 16-inch panel width. It installs on slopes of 3:12 or greater. Because the seams lock without mechanical seaming tools, this profile is well-suited for residential and light commercial projects where appearance and installation speed are important. See the Snow Guards Compatibility Chart for Sheffield Metals SMI 1.5 SnapLock 450+ Standing Seam Metal Roofing Panels.

This panel works with many of our snow guard products. When fully adhered, polycarbonate guards perform consistently and help limit moisture buildup beneath the base. For regions with heavier snowfall, larger guards such as IceJax II, Snojax II, and SnoBlox Ace provide stronger retention. In areas with lighter or moderate snow, smaller options like the SnoBlox Deuce, EcoJax, and IceJax I are a better match. For customers who prefer controlled snow release, SnowBreaker and SnowBreaker 3M help break sliding snow into smaller pieces. The seam design also supports clamp-on systems, including SnoCleat RC, SnoCleat RCT, SnoBar, and ColorBar, which attach using standard SnoBar clamps or RoofClamp hardware. Aluminum roofing may require additional rail rows to maintain balanced load distribution.

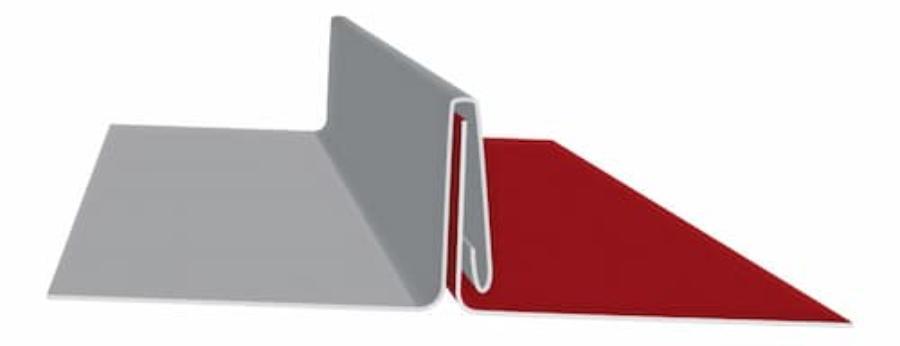

1.5 SnapLock 450 SL Panel

The 450 SL panel is a versatile snap lock profile with a 1.5-inch seam height and a 16-inch panel width. Available in 22-gauge and 24-gauge steel, it installs on roofs with a minimum slope of 3:12. As a true snap lock system, it does not require mechanical seaming equipment, allowing for a fast installation while still delivering a clean, dependable finish for both residential and commercial applications. See the Snow Guards Compatibility Chart for Sheffield Metals 1.5 SnapLock 450 SL Standing Seam Metal Roofing Panels.

This profile is compatible with a wide range of our snow retention systems. Fully adhered polycarbonate guards offer reliable performance and help prevent moisture from forming beneath the base. For heavy snow regions, larger guards such as IceJax II, Snojax II, and SnoBlox Ace provide increased holding strength. In moderate or light snow conditions, smaller guards like the SnoBlox Deuce, EcoJax, and IceJax I are suitable. When controlled shedding is preferred, SnowBreaker and SnowBreaker 3M are the recommended solutions. The seam layout also works with clamp-on systems, including SnoCleat RC, SnoCleat RCT, SnoBar, and ColorBar, using standard SnoBar clamps or RoofClamp hardware. Aluminum panels may need additional rail rows to maintain proper load distribution.

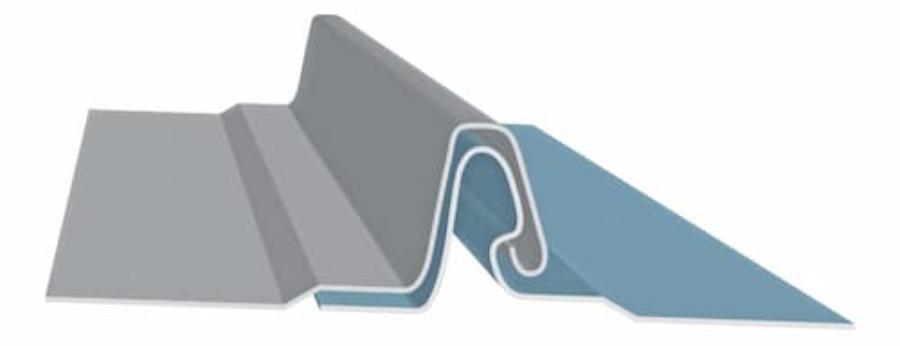

SMI 1.0 Fastener Flange Snaplock Panel

The SMI 1.0 Fastener Flange Snaplock panel uses a nail-flange attachment method, allowing it to fasten directly to a plywood deck without clips. It comes in a 16-inch width with a 1-inch seam height and is available in 22-gauge or 24-gauge steel. It installs on slopes of 3:12 or greater. While it provides a clean architectural appearance, it lacks the structural reinforcement required for clamp-style snow retention systems. See the Snow Guards Compatibility Chart for Sheffield Metals SMI 1.0 Fastener Flange Standing Seam Metal Roofing Panels.

Because of the rib shape, this panel cannot accept clamp-on products such as our SnoCleat RC, SnoCleat RCT, SnoBar, or ColorBar. It is well-suited for adhesive-mounted polycarbonate pad-style guards. For heavier snow loads, larger guards like IceJax II, Snojax II, and SnoBlox Ace offer the necessary strength. In milder climates, smaller guards such as the Deuce, EcoJax, and IceJax I are typically sufficient. For controlled shedding, SnowBreaker and SnowBreaker 3M help break sliding snow into smaller, safer pieces. When installing on striated panels, applying a thicker adhesive bed helps fill the grooves. It prevents trapped moisture from freezing beneath the guard, improving long-term adhesion.

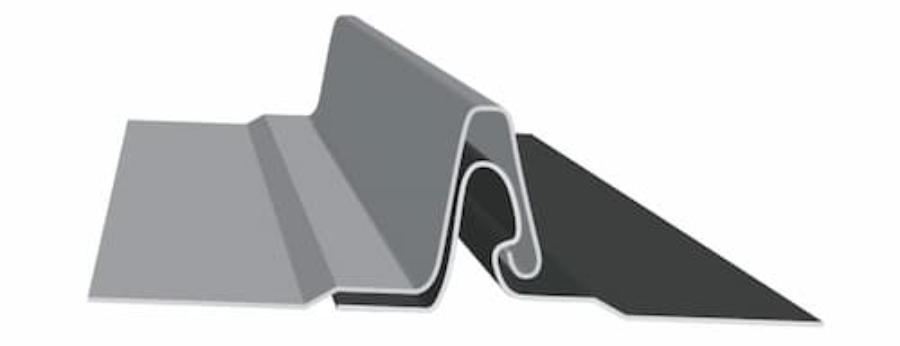

SMI 1.5 Fastener Flange Snaplock Panel

The SMI 1.5 Fastener Flange Snaplock panel measures 14.75 inches wide with a 1.5-inch seam height. Offered in 22-gauge and 24-gauge steel, it installs on slopes of 3:12 or greater and attaches directly to the deck through a concealed nail flange. See the Snow Guards Compatibility Chart for Sheffield Metals SMI 1.5 Fastener Flange Standing Seam Metal Roofing Panels.

The rib geometry prevents this panel from working with clamp-on systems such as our SnoCleat RC, SnoCleat RCT, SnoBar, or ColorBar. It pairs extremely well with adhesive-applied polycarbonate pad-style guards. Heavy-snow regions benefit from larger models such as IceJax II, Snojax II, and SnoBlox Ace. At the same time, lighter climates benefit from smaller options such as the Deuce, EcoJax, and IceJax I. For customers who prefer a shedding style approach, SnowBreaker and SnowBreaker 3M help fracture moving snow into smaller pieces. On striated panels, a thicker adhesive layer helps bridge the grooves. It prevents moisture from freezing beneath the guard, thereby strengthening the bond.

SMI 1.5 SnapLock 550 Panel

The SMI 1.5 SnapLock 550 panel provides a bold, clean appearance with finished seams nearly one-half inch wide. Steel or aluminum versions range from 15 to 19 inches in width and feature a 1.5-inch seam height. The minimum recommended slope is 2:12. Snap lock profiles install quickly, making them a popular choice for efficient residential and commercial roofing. See the Snow Guards Compatibility Chart for Sheffield Metals SMI 1.5 SnapLock 550 Standing Seam Metal Roofing Panels.

Due to the rib configuration, clamp-on systems such as our SnoCleat RC, SnoCleat RCT, SnoBar, and ColorBar are not compatible with it. Adhesive-mounted polycarbonate pad-style guards are an excellent fit. We recommend larger guards, such as IceJax II, Snojax II, and SnoBlox Ace, for roofs with significant snowfall. At the same time, smaller models such as the Deuce, EcoJax, and IceJax I work well in lighter conditions. For controlled shedding, SnowBreaker and SnowBreaker 3M help disperse sliding snow. When working with striated panels, using a thicker adhesive layer fills the grooves. It prevents freeze-thaw moisture issues, ensuring a more durable installation.

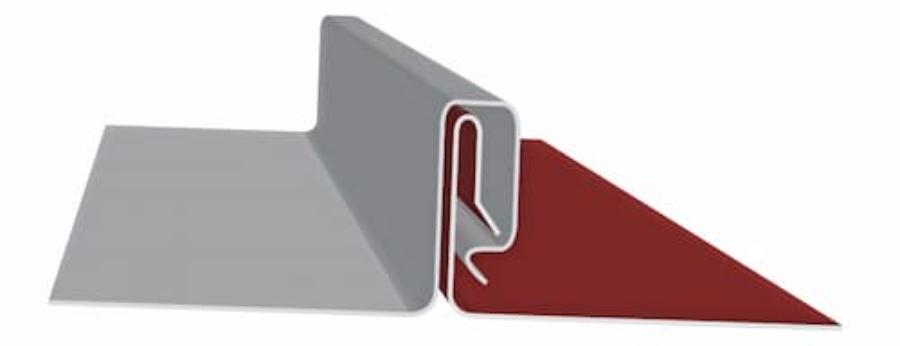

SMI 1.75 SnapLock Panel

The SMI 1.75 SL panel offers a modern standing seam appearance with added structural strength. Produced in 16 and 18-inch widths using 22-gauge or 24-gauge steel, it meets UL 580 and UL 1897 uplift requirements. With a 1.75-inch seam height, it also passes TAS 100 for wind-driven rain, making it a strong option for coastal environments. See the Snow Guards Compatibility Chart for Sheffield Metals SMI 1.75 SnapLock Standing Seam Metal Roofing Panels.

The rib design prevents the use of clamp-on systems such as our SnoCleat RC, SnoCleat RCT, SnoBar, and ColorBar. Still, it works exceptionally well with adhesive-mounted polycarbonate pad-style guards. In heavy-snow regions, larger guards like IceJax II, Snojax II, and SnoBlox Ace deliver the best performance. For lighter snowfall, smaller guards such as the Deuce, EcoJax, and IceJax I are typically sufficient. Customers seeking controlled shedding can rely on SnowBreaker and SnowBreaker 3M to break up sliding snow. When installing on striated surfaces, a thicker adhesive application helps fill the channels. It prevents moisture from freezing beneath the guard, strengthening the overall bond.

Sheffield Metals Compatibility Chart for Snow Guards

Sheffield Metals Compatibility Chart for Snow Guards (Continued)

Considerations for Adding Snow Guards to Standing Seam Roofs by Sheffield Metals

Why should I test-fit sample snow guards before installation?

Testing a few guards on the roof first lets installers verify spacing, alignment, and how the guard sits on the panel. This quick trial run confirms the model is appropriate before placing a full order and helps preserve warranty requirements.

Which snow-retention options work best for unusual roof shapes?

Roofs with sharp pitches, curved areas, or uncommon panel designs often need systems tailored to those specific contours. Your panel manufacturer can point you toward products engineered for these more complex configurations.

How can I confirm your snow guards fit my roof profile?

Select guards that match the exact dimensions and material of your roof panels. Reviewing compatibility charts and technical data ensures the components align properly and deliver dependable long-term performance.

When is the right weather window for me to install adhesive-mounted guards?

Only install adhesive-applied guards when temperatures stay above 50°F for a continuous 28-day period. Although the adhesive becomes moisture-resistant after about 24 hours, it takes about 4 weeks to cure fully.

Which snow-load requirements apply in my local area?

Local building codes specify the minimum load capacity your snow-retention system must meet. Our pad-style guards work for ground snow loads up to 45 pounds per square foot. At the same time, areas with heavier winter accumulation often require the added durability of rail-style systems.

Conclusion

From the first discussions about your project through the final stages of installation, our team remains focused on delivering steady, dependable support. Whether you contact us by phone, email, or through our online platform, you can count on guidance tailored to your needs so you can move forward with confidence. To make product selection easier, we provide a comprehensive Snow Guard Buyer's Guide and a Best Practices manual, shaped by the experience of seasoned industry professionals. These resources help you avoid common pitfalls and approach your installation with clarity and precision. By pairing clear instructions with reliable products and responsive customer service, we work to ensure your snow retention system performs exactly as it should. Every step reflects our commitment to safety, integrity, and trustworthy assistance.

Do you have a metal roof from a different manufacturer?

Visit our "Snow Guard Compatibility by Roof Manufacturer" resource page for detailed information on which snow guards and snow retention systems are compatible with your metal roof.
