Snow Guard Options for BETCO Mechanically Fastened Roof Panels

See the Snow Guards Compatibility Chart for BETCO Screw Down Metal Roofing Panels.

Which Snow Guards Work Best with BETCO's Exposed-Fastener Panels?

Metal roofs with exposed fasteners are especially vulnerable to rapid, unexpected snow and ice releases during winter.

When a roof sheds accumulated snow in one large movement, it can create a dangerous sliding mass that drops without warning. The smooth surface of exposed-fastener panels encourages this behavior, allowing snow to break free in large sheets rather than melting away in smaller amounts. This sudden movement can threaten anything positioned below the eave, including people, pets, vehicles, landscaping, and outdoor equipment. To help manage these risks, we provide snow retention systems tailored to specific panel shapes and regional weather demands. Installers can choose between individual pad-style guards or continuous rail systems, giving them the flexibility to match different roof layouts. Our blogs, installation instructions, compatibility charts, and manufacturer-specific resources help contractors and building owners make informed decisions. Whether the area receives occasional flurries or heavy seasonal accumulation, snow retention plays a key role in controlling how snow behaves on a metal roof.

About BETCO and Its Exposed-Fastener Panels

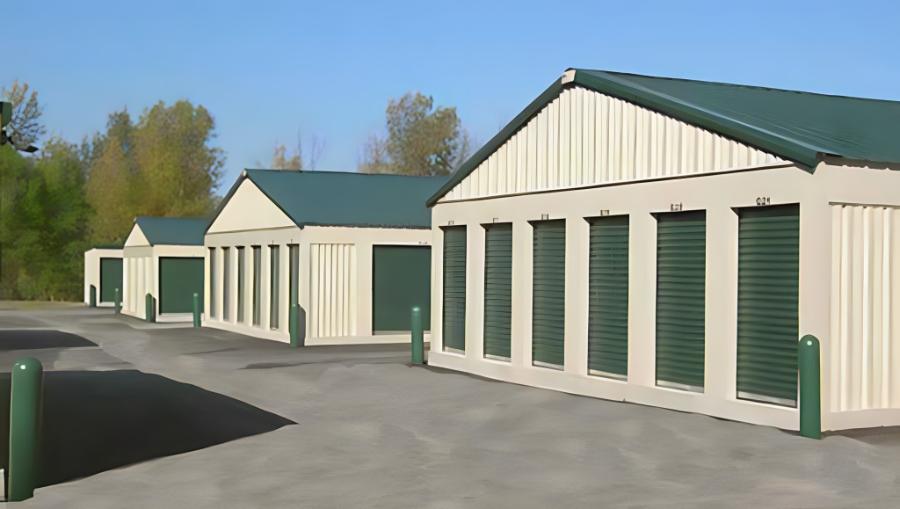

BETCO Inc. has been a major contributor to the self-storage construction industry since 1984, building a reputation for durable, well-engineered structures supported by decades of experience. Founded by Sam Sabri and Boyd Whitney, the company's name, Builder Engineering and Technology Co., reflects its focus on innovation and technical precision. Based in Statesville, North Carolina, BETCO has grown from a small operation into a global provider known for systems such as the Advantage Building Series and SmartStorage, which help developers manage costs without sacrificing quality. Their emphasis on strength, thoughtful design, and long-term performance has earned the confidence of architects and contractors worldwide. With more than 50 million square feet of completed storage facilities, BETCO has become a trusted leader in the industry. The company manufactures all major components in-house, including roll-up doors and Galvalume standing seam roofing, ensuring consistency and quality control. Their construction teams and customer support staff work together to deliver smooth project execution. BETCO also incorporates forward-thinking technology, including the SmartReady system, which prepares facilities for future upgrades.

136 Panel

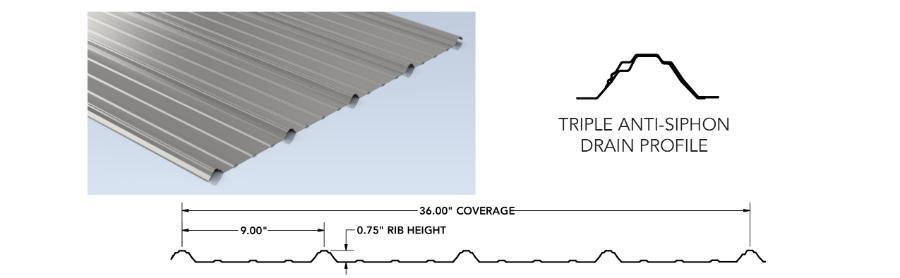

The 136 Panel measures 36 inches wide. It features a repeating rib layout that includes four primary ribs measuring 3/4 inch tall every 9 inches, along with three evenly spaced secondary ribs that enhance strength and water management. The profile includes a triple anti-siphon drain that helps protect against leaks during wind-driven rain, and its reduced side lap design decreases overlap by 30 percent for improved efficiency. The panel is available in 29-gauge Galvalume or galvanized steel, with optional pre-painted finishes backed by a 40-year warranty. The steel provides a minimum yield strength of 80,000 psi. Panels are cut to length to eliminate end laps. They are suitable for agricultural, commercial, and residential projects across a wide range of climates. See the Snow Guards Compatibility Chart for BETCO 136 Screw Down Metal Roofing Panels.

This profile supports many of our snow retention options. Polycarbonate guards such as the SnoBlox Deuce, Ecojax, and SnowBreaker fit neatly between the minor ribs. Metal choices, including the SnoCleat PBR and decorative SnowCatchers, can be mounted in the flat center area to combine function with aesthetics. "Installers must mechanically fasten the Snojax I, but they may install the IceJax I with screws or adhesive. For larger roof sections or areas with ground snow loads above 45 psf, rail systems are often the preferred solution. When paired with Tall ColorBrackets and the correct fasteners, the ColorBar PBR and SnoBar PBR systems provide dependable snow management in a variety of climates.

236R Panel

The 236R Panel delivers 36 inches of coverage with 1 1/4‑inch‑tall ribs spaced 12 inches on center, providing a strong structural profile for roofing or wall use. A purlin bearing rib improves weather resistance, and the panel is available in 26-gauge pre-painted Galvalume with a 40-year warranty, bare Galvalume with a 20-year warranty, or optional 29-gauge Galvalume in painted or unpainted finishes. The panel nests for efficient transport, is cut to length for installation accuracy, and is supported by matching fasteners and trim. The steel has a minimum yield strength of 80,000 psi, and the panel's section properties comply with the North American Specification for Cold-Formed Steel Structural Members. See the Snow Guards Compatibility Chart for BETCO 236R Screw Down Metal Roofing Panels.

This panel works with a wide selection of our snow guard systems. Installers can use screw-down SnoBar and ColorBar rails, the SnoCleat PBR, and stainless steel SnowCatchers in designs such as Standard Rectangle, Fleur de lis, Sun Burst, Maple Leaf, Mustang, and Kodiak. Installers can mount most polycarbonate guards with adhesive or screws. Still, they must mechanically fasten the Snojax I. Surebond SB 190 should be used only with polycarbonate guards. "Installers should center smaller guards between the minor ribs. Position larger models, such as the Snojax II and IceJax II, off‑center so they straddle the left or right minor rib. Each guard must remain aligned over the same rib throughout the installation. Installers should never attach guards or rails to the high ribs because they do not provide adequate structural support. Fasteners must penetrate the low flats and anchor into solid material beneath the panel to ensure long-term performance.

U Panel

The U Panel provides 36 inches of coverage with 3/4 inch ribs spaced 6 inches on center, creating a clean, uniform appearance suitable for vertical or horizontal installation as a liner panel or partition. The panel comes in 26‑ or 29‑gauge Galvalume. The panel is cut to length and includes defined structural values, such as Ix, Sx, allowable bending moment, and allowable shear, all calculated per foot of panel width in accordance with the North American Specification for Cold-Formed Steel Structural Members. Its consistent 6-inch rib spacing delivers predictable performance for interior or exterior use. See the Snow Guards Compatibility Chart for BETCO U Panel Screw Down Metal Roofing Panels.

The U Panel's low flats, which measure about 3 1/2 inches wide, limit some installation options. However, there are still several effective snow guard choices. Individual polycarbonate pad-style guards, such as the Ace, Deuce, Ecojax, or IceJax, work well for holding snow and ice on the roof. SnowBreaker and SnowBreaker 3M are suitable when the goal is to break snow into smaller, safer pieces as it sheds. Installers can mount these guards with screws or Surebond SB‑190 adhesive. Tall ColorBrackets also allow installers to attach mechanically fastened SnoBar and ColorBar systems to the U Panel.

BETCO Compatibility Chart for Snow Guards

	136 Panel	236R Panel	U Panel
Ecojax	YES	YES	YES
IceJax I	YES	YES	YES
IceJax II	NO	YES	NO
SnoBlox Deuce	YES	YES	YES
Ace	NO	YES	YES
Snojax I	NO	YES	NO
Snojax II	NO	YES	NO
SnowBreaker	YES	YES	YES
SnowCatcher	YES	YES	NO
SnoBar PBR	YES	YES	YES
ColorBar PBR	YES	YES	YES
SnoCleat PBR	YES	YES	NO
SnoCleat 2.67	NO	NO	NO
SnoBar 2.67	NO	NO	NO
ColorBar 2.67	NO	NO	NO

Considerations for Adding Snow Guards to Exposed Fastener Roofs by BETCO

Should I Use Sealant Under My Screw-Mounted Snow Guards?

A layer of sealant beneath screw-mounted guards helps seal gaps, reduce the risk of water getting under the hardware, and prevent moisture from tracking into the roof system. This extra barrier supports long-term durability and overall system reliability.

How Can I Fasten Snow Guards for Maximum Strength?

For the most secure installation, attach snow guards directly to structural members, such as rafters or purlins, rather than relying solely on the roof panels. Tying into these framing components boosts load capacity and improves long-term holding strength.

When Is the Best Time to Install Adhesive-Mounted Snow Guards?

Adhesive-set guards perform best when installed during warm conditions, usually late spring through early summer, when temperatures consistently remain above 50°F. Warmth speeds up curing, and products like SureBond SB-190 typically gain moisture resistance within about a day.

How Can I Coordinate My Snow Guards with My Roof?

Selecting finishes that match or closely resemble your roof’s color and texture helps the guards blend naturally into the surface. Powder-coated finishes offer lasting color stability, while DIY coating options provide a quick, cost-effective way to personalize the look.

Should I Test Fit Snow Guards Before Final Installation?

Testing the guards temporarily on the roof before fastening them allows you to verify spacing, alignment, and layout. This simple check helps ensure a uniform pattern and a clean, professional final appearance.

What Snow Guard Solutions Work Best for Unique Roof Shapes?

Roofs with curves, arches, or other unusual contours often require guards shaped specifically for those profiles. Standard units may not sit correctly, making custom-fit designs and adherence to manufacturer placement guidance essential for dependable performance.

Conclusion

At SnoBlox-Snojax, we design our snow guards and snow retention systems with long-term durability as our primary goal, creating products that hold up through years of harsh winter weather rather than relying on short-lived solutions that break down too quickly. Our reputation has grown from our commitment to clear communication and individualized support, which helps us maintain strong relationships with customers across the United States and around the world. From the earliest planning discussions to the final stages of installation, we provide practical guidance, straightforward instructions, and prompt assistance. Resources like our Snow Guard Buyer's Guide and detailed installation manuals give building owners the knowledge they need to choose the right system for their roof profile and regional snow conditions. Whether someone reaches out by phone or email, they receive personalized recommendations, help selecting the correct products, and quick responses to installation or ordering questions. By simplifying each step and providing reliable expertise, we ensure every customer receives a snow retention system that performs exactly as it should.

Do you have a metal roof from a different manufacturer?

Visit our "Snow Guard Compatibility by Roof Manufacturer" resource page for detailed information on which snow guards and snow retention systems are compatible with your metal roof.

Disclaimer

The views, recommendations, and information presented in this blog are solely those of the author and do not necessarily reflect the opinions or positions of the featured panel manufacturer, its brands, subsidiaries, or parent companies. Customers are strongly encouraged to reach out directly to the roof panel manufacturer for inquiries regarding snow guard compatibility with their products, as well as to address any potential warranty issues that may arise following the installation of our products.
