Snow Guards Compatible with Tri County Metals Exposed-Fastener Panels

See the Snow Guards Compatibility Chart for Tri County Metals Screw Down Metal Roofing Panels.

Which Snow Guards Work Best with Tri County Metals’s Exposed Fastener Panels?

Exposed-fastener metal roofs can suddenly shed snow and ice, releasing large sheets when temperatures fluctuate.

Because these panels have a smooth surface that offers little resistance, snow tends to slide off in a single, quick movement rather than melting gradually. This rapid release, often compared to a roof avalanche, can create safety concerns for people, pets, vehicles, and anything positioned below the roof edge. To help minimize these risks, we supply snow-management solutions designed for a wide range of panel profiles and regional snow-load conditions. Installers can choose from individual pad-style guards or continuous rail systems that spread holding power across the roof. We also offer extensive educational tools, including blog posts, installation guides, compatibility resources, and manufacturer-specific recommendations to support proper product selection. Whether the building is in a mild region or an area with heavy winter weather, controlling snow movement is essential to protecting a metal roof.

About Tri County Metals

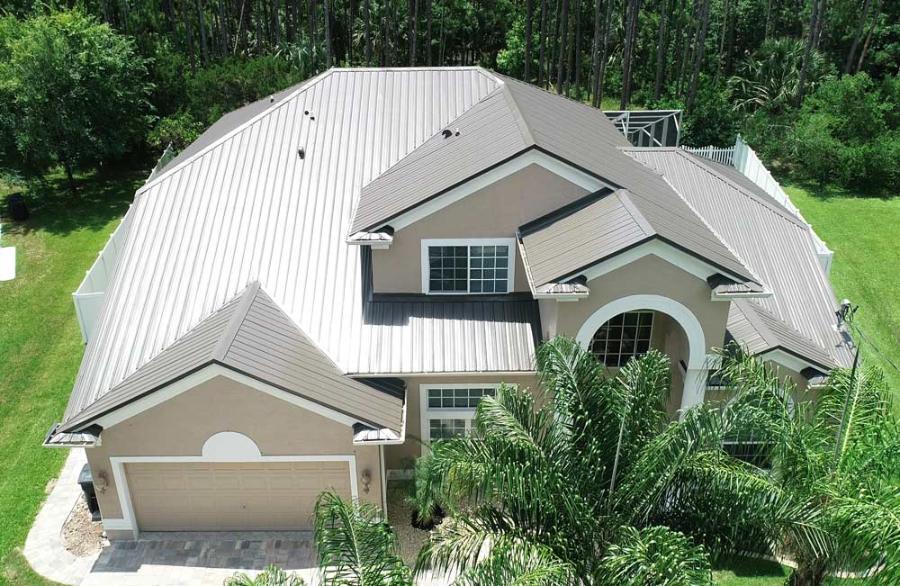

Tri County Metals began manufacturing metal roofing in Trenton, Florida, in 2003 and has grown to nine locations serving customers throughout Florida and parts of South Georgia. Even with this expansion, the company maintains a family-focused culture and continues to deliver consistently strong performance. Since 2020, they have upheld a 98 percent on-time and complete delivery rate. In 2023, they shipped nearly 15 million individual components with 99.9 percent accuracy. Over the past decade and a half, they have averaged only 1 warranty claim per 600 roofing installations. Their standing seam panels meet High-Velocity Hurricane Zone requirements and carry Miami-Dade NOA approvals. Customers can choose from 45 Energy Star "Cool Roof" colors, as well as StealthBond-approved options.

Ultra Rib Panel

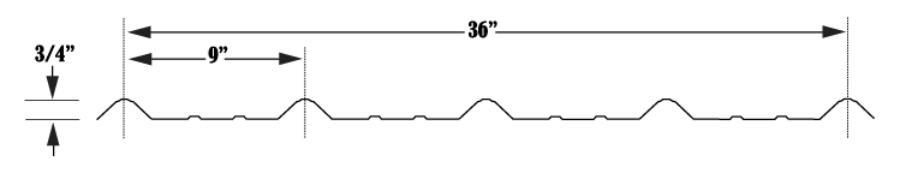

The Ultra Rib panel from Tri County Metals is an exposed-fastener option suited for residential, agricultural, light commercial, and industrial projects. It provides 36 inches of net coverage and features five ribs spaced 9 inches apart with a rib height of three-quarters of an inch, creating a familiar, easy-to-install profile. Produced in-house, the panel comes in 26- and 29-gauge steel with a Siliconized Modified Polyester finish or an Acrylic-coated Galvalume AZ55 surface for enhanced longevity. It includes a 50-year limited paint warranty or a 45-year mill-finish warranty, making it a dependable choice for a wide range of applications. See the Snow Guards Compatibility Chart for Tri County Metals Ultra Rib Screw Down Metal Roofing Panels.

This panel is compatible with many of our snow-retention options. Polycarbonate guards such as the SnoBlox Deuce and SnowBreaker fit neatly between the minor ribs. At the same time, metal guards like the SnoCleat PBR and decorative SnowCatchers mount to the flat center section for added strength and visual appeal. Installers must mechanically fasten the Snojax I, while they may secure the IceJax I with screws or adhesive. For larger roofs or areas with ground snow loads above 45 PSF, rail systems offer the most consistent performance. When paired with Tall ColorBrackets and the correct fasteners, the ColorBar PBR and SnoBar PBR systems provide reliable snow control across a variety of climates.

5V Panel

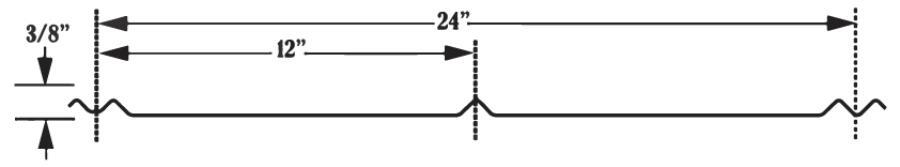

Tri County Metals' 5V panel delivers the classic, coastal aesthetic often associated with Florida and Key West-inspired architecture. This traditional profile offers 24 inches of net coverage. It is available in 26-gauge steel, 24-gauge steel, or 0.32 aluminum, making it suitable for both residential and agricultural structures. Finish options include Acrylic-coated Galvalume AZ55, Silver Metallic aluminum, and Regal White, with additional colors available through sales representatives. Its lightweight design, clean lines, and long-lasting paint and coastal warranties make the 5V panel an excellent choice for homeowners seeking a timeless, low-profile metal roof. See the Snow Guards Compatibility Chart for Tri County Metals 5V Screw Down Metal Roofing Panels.

This panel works with a wide selection of snow-retention products. Stainless steel SnowCatchers, available in Standard, Sun Burst, Maple Leaf, Fleur-de-lis, Kodiak, and Mustang designs, can be installed individually. Polycarbonate guards such as the SnoBlox Deuce, IceJax II, and SnoBlox Ace can be attached using screws or adhesive, though the Snojax I requires mechanical fastening. For controlled shedding, the SnowBreaker and SnowBreaker 3M help disperse snow and ice into smaller, safer fragments. In regions with snow loads above 45 PSF, or for those who prefer a sleek, continuous look, rail systems like SnoBar and ColorBar offer strong, consistent protection. These systems rely on Tall ColorBrackets with butyl tape gaskets for a secure installation.

PBR Panel

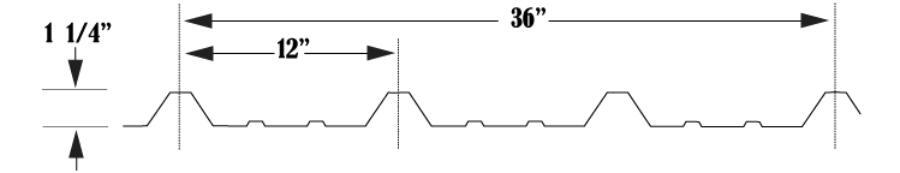

Tri County Metals' PBR panel is a durable, structural roofing option for long-span and low-slope applications. It provides 36 inches of net coverage with four ribs spaced 12 inches apart and a rib height of 1-1/4 inches, making it suitable for residential, agricultural, light commercial, and industrial uses. Manufactured in-house, the panel is available in 26-gauge steel and 24-gauge mill finish, with coating options including Siliconized Modified Polyester and Acrylic-coated Galvalume AZ55. It carries a 50-year limited paint warranty or a 45-year mill-finish warranty, ensuring long-term performance in demanding environments. See the Snow Guards Compatibility Chart for Tri County Metals PBR Screw Down Metal Roofing Panels.

This panel works with a broad selection of our snow-retention products, allowing installers to match the system to the project's snow load and aesthetic needs. Stainless steel pad-style guards, such as the SnowCatcher series in Standard, Sun Burst, Maple Leaf, Fleur-de-lis, Kodiak, and Mustang designs, can be mechanically fastened to the panel surface. Polycarbonate guards, including the SnoBlox Deuce, IceJax II, and SnoBlox Ace, can be installed with adhesive or screws, while the Snojax I must be mechanically attached. For breaking snow into smaller pieces, the SnowBreaker and SnowBreaker 3M offer effective control. In regions with snow loads above 45 PSF, or when a streamlined appearance is preferred, rail systems like SnoBar and ColorBar provide a strong, continuous solution. These systems use Tall ColorBrackets with butyl tape gaskets for secure installation. Because the panel has a textured finish, installers may need a thicker adhesive or sealant layer to ensure proper bonding.

Tri County Metals Compatibility Chart for Exposed-Fastener Snow Guards

	Ultra Rib Panel	5V Panel	PBR Panel
Ecojax	YES	YES	YES
IceJax I	YES	YES	YES
IceJax II	NO	YES	YES
SnoBlox Deuce	YES	YES	YES
Ace	NO	YES	YES
Snojax I	NO	YES	YES
Snojax II	NO	YES	YES
SnowBreaker	YES	YES	YES
SnowCatcher	YES	YES	YES
SnoBar PBR	YES	YES	YES
ColorBar PBR	YES	YES	YES
SnoCleat PBR	YES	YES	YES
SnoCleat 2.67	NO	YES	NO
SnoBar 2.67	NO	NO	NO
ColorBar 2.67	NO	NO	NO

Considerations for Adding Snow Guards to Exposed Fastener Roofs by Tri County Metals

Should I Test Fit Snow Guards Before Final Installation?

Doing a temporary layout before fastening the guards lets you verify spacing, alignment, and overall flow. This quick check helps you achieve a consistent pattern and a clean, professional final appearance.

How Can I Coordinate My Snow Guards with My Roof?

Selecting finishes that complement the roof’s color and surface texture helps the guards blend naturally into the design. Long-lasting powder-coated finishes hold up well, while field-applied coatings offer an economical way to fine-tune the look.

What Snow Guard Solutions Work Best for Unique Roof Shapes?

Roofs with curves, arches, or other unusual contours often need guards shaped or chosen specifically to match those lines. Standard units may not sit correctly, so custom-fitted options and close attention to manufacturer guidelines are key to dependable performance.

When Is the Best Time to Install Adhesive-Mounted Snow Guards?

Adhesive-based guards cure best in warm conditions, typically from late spring through early summer when temperatures remain above 50°F. Heat accelerates the bonding process, and products like SureBond SB-190 generally become moisture-resistant within roughly a day.

Should I Use Sealant Under My Screw-Mounted Snow Guards?

Adding sealant beneath screw-attached guards helps close small gaps, limit water intrusion, and keep moisture from entering the roof assembly. This simple step enhances the reliability and longevity of the installation.

How Can I Fasten Snow Guards for Maximum Strength?

For the most secure hold, fasten snow guards directly into structural framing, such as purlins or rafters, rather than relying solely on the roof panels. Connecting to these members increases load-bearing strength and supports long-term durability.

Conclusion

At SnoBlox-Snojax, long-lasting performance is the foundation of every product we create. We engineer our snow guards and snow-retention systems to handle repeated freeze–thaw cycles, substantial snow loads, and harsh winter conditions without the premature failures often associated with lower-quality products. Customers across the United States and around the globe rely on our solutions not only for their durability but also for the personalized support that accompanies each purchase. From the earliest planning discussions to the final installation steps, our team provides clear guidance, practical recommendations, and prompt assistance. Tools like our Snow Guard Buyer's Guide and comprehensive Best Practices manual help contractors and building owners choose systems that suit their roof profile and regional climate. Whether someone reaches out by phone or email, they receive tailored product suggestions, compatibility reviews, and quick answers to installation or ordering questions. By simplifying the process and drawing on decades of experience, we help ensure that every project results in a snow-retention system that performs reliably for years to come.

Do you have a metal roof from a different manufacturer?

Visit our "Snow Guard Compatibility by Roof Manufacturer" resource page for detailed information on which snow guards and snow retention systems are compatible with your metal roof.

Compatibility Guidance Note

The compatibility information presented in this guide is based on SnoBlox-Snojax product testing and field experience with Tri County Metals panel profiles. Panel manufacturers periodically update profile specifications, and individual project variables including seam condition, coating type, and installation method can affect outcomes. Customers are encouraged to confirm current panel specifications directly with Tri County Metals and to contact SnoBlox-Snojax with project-specific questions before ordering.
