Snow Retention Solutions for 5280 Metal Supply's Standing Seam Roofs
Posted by Derek Gamble - SnoBlox-Snojax Specialist on Feb 18th 2026
See the Snow Guards Compatibility Chart for 5280 Metal Supply Standing Seam Metal Roofing Panels.
Which snow guard systems are best suited for 5280 Metal Supply’s standing seam panels?
Selecting the right snow retention system for your standing seam panels starts with understanding how these roofing profiles behave under winter conditions.
Standing seam roofs provide a modern look and dependable performance, but their smooth surfaces can allow snow and ice to slide off in large, heavy sheets. These sudden releases, often referred to as roof avalanches, can damage vehicles, landscaping, and structures below, and often pose a safety risk to anyone nearby, including people and pets. Snow guards and bar‑style systems control this movement, and you get the best results by choosing products that match the panel's geometry and attachment method. Because concealed-fastener panels require solutions designed specifically for their profile, proper system selection is essential for long-term safety. This blog outlines the snow guard options that pair effectively with 5280 Metal Supply’s standing seam panels so you can choose the right configuration for your project.
About 5280 Metal Supply
5280 Metal Supply serves contractors, builders, and homeowners throughout Colorado with a strong emphasis on dependable service, quick turnaround, and consistent product availability. Their operation is built around efficiency, ensuring customers can source roofing and siding materials without delays or complications. Their team prioritizes craftsmanship, communication, and a streamlined ordering process, blending modern production capabilities with a local, relationship-focused approach. Their product lineup centers on durable materials, reliable performance, and a customer experience designed to support projects of any scale across the region.

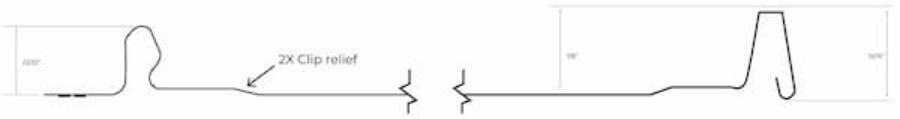

Nail Strip Panels
The Nail Strip Standing Seam Panel from 5280 Metal Supply gives installers and DIY users a concealed‑fastener system that delivers clean aesthetics and straightforward installation over solid decking. Instead of exposed screws, the panel uses an integrated fastening flange, making it a strong fit for residential roofs, architectural accents, and light-commercial applications where appearance and simplicity are priorities. Two rib heights are available: 1 inch and 1.5 inches, each approved for minimum slopes of 3:12. Width options include 11.94, 15.94, and 19.94 inches for the 1-inch profile, and 14.69 and 18.69 inches for the 1.5-inch profile. Installers can order panels in 22, 24, or 26 gauge, depending on color and material availability. The panels use AZ‑50 Grade D steel and come in painted finishes, Galvalume, ReziBond, or 16 oz and 20 oz Copper. Aesthetic choices include Flat, Striated, and Pencil Rib, and the system carries strong performance ratings, including UL Class 90 Wind Uplift, Class 4 Hail Impact, and Class A Fire. Premium coatings like Durapon70 PVDF and ULTRA CLAD Kynar500/Hylar5000 offer long-term color protection with warranties up to 35 years, giving the Nail Strip panel a durable, architectural finish suitable for a wide range of applications. See the Snow Guards Compatibility Chart for 5280 Metal Supply Nail Strip Standing Seam Metal Roofing Panels.
This panel's short tapered seam prevents it from pairing with SnoCleat RC, SnoCleat RCT, SnoBar, or ColorBar systems. It is, however, fully compatible with our adhesive-mounted polycarbonate pad-style snow guards. Larger guards, such as IceJax II, Snojax II, and SnoBlox Ace, are recommended for higher snow loads, while smaller options, such as the Deuce, EcoJax, and IceJax I, work well in lighter conditions. For customers who prefer controlled shedding rather than full retention, SnowBreaker and SnowBreaker 3M help disperse snow as it moves. Use a heavier adhesive application to fill striation gaps and block moisture intrusion that can freeze and weaken the bond.

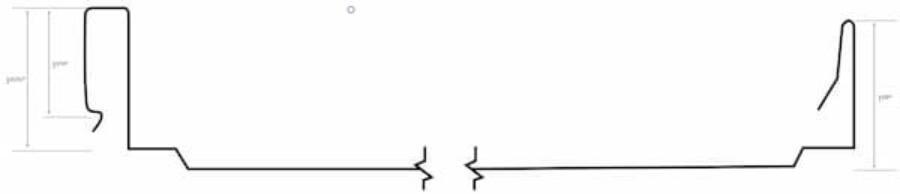

Snap Lock Panels
5280 Metal Supply's Snap Lock Standing Seam Panel features a true snap-together design, using interlocking male and female legs that secure without mechanical seaming. Concealed clips fasten beneath the panel, preserving the smooth standing-seam appearance while delivering reliable performance for both residential and commercial projects. Snap Lock is available in two rib heights: 1.5 inches and 1.75 inches, with widths of 15.875 and 19.875 inches for the 1.5-inch profile, and 13.875 and 17.875 inches for the 1.75-inch profile. Panels come in 22, 24, and 26 gauge AZ‑50 Grade D steel in Painted Steel, Galvalume, ReziBond, Cold‑Rolled Steel, and 16 oz or 20 oz Copper. Weight varies by gauge and profile, ranging from 0.75 to 1.25 lbs/sqft. The 1.5-inch panel installs over solid decking with a minimum slope of 3:12. At the same time, the 1.75-inch version supports open framing, steel decking, and insulated assemblies, functioning down to 2:12 (hot melt required below 3:12). Finish options include Durapon70 PVDF and ULTRA CLAD Kynar500/Hylar5000, both backed by 35-year warranties, with Zincalume AZ50 offering a 20-year warranty. Aesthetic choices include Flat, Striated, and Pencil Rib. The 1.75-inch panel carries extensive testing credentials, including UL 580 Class 90 Wind Uplift, UL 2218 Class 4 Hail, UL 790 Class A Fire, and multiple ASTM standards. With factory or on-site roll-forming options, Snap Lock provides a versatile, durable solution for projects that require clean lines and efficient installation. See the Snow Guards Compatibility Chart for 5280 Metal Supply Snap-Lock Standing Seam Metal Roofing Panels.
This panel supports a broad range of our snow retention options. Adhesive-mounted polycarbonate guards perform well when installed with full adhesive coverage to prevent moisture from collecting beneath the guard. We recommend larger models such as IceJax II, Snojax II, and SnoBlox Ace for heavy-snow regions. At the same time, smaller guards such as the SnoBlox Deuce, Ecojax, and IceJax I work well in lighter conditions. SnowBreaker and SnowBreaker 3M are effective for controlled shedding. This panel also accommodates clamp-on systems, including SnoCleat RC, SnoCleat RCT, SnoBar, and ColorBar, which attach using standard SnoBar clamps or RoofClamp hardware. Softer metals such as aluminum may require additional rail rows to maintain proper support.

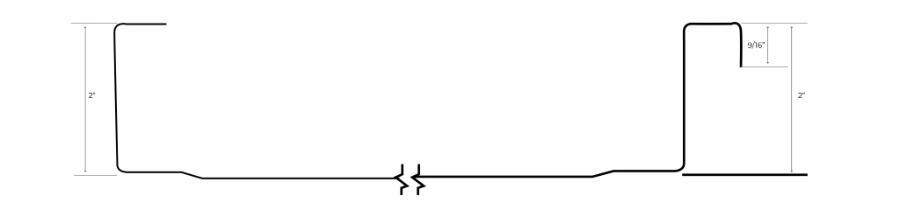

Mechanical Lock Panels
5280 Metal Supply designed the Mechanical Lock Standing Seam Panel for maximum strength, weather resistance, and long-term reliability. The system uses interlocking panels that are mechanically seamed on-site, creating a fully watertight connection ideal for demanding residential, commercial, and architectural applications. Mechanical Lock panels come in 1.5-inch and 2-inch rib heights, with widths of 12, 16, and 20 inches for the 1.5-inch profile and 14.1875 and 18.1875 inches for the 2-inch profile. Gauge options include 22, 24, and 26, with weights ranging from 0.75 to 1.25 lbs/sqft depending on thickness. Panels are manufactured from AZ-50 Grade D steel and available in Painted Steel, Galvalume, ReziBond, Core-Ten, Cold-Rolled Steel, and 16 oz or 20 oz Copper. Finish options include Durapon70 PVDF and ULTRA-CLAD Kynar500/Hylar5000, each with a 35-year warranty, while Zincalume AZ50 carries a 20-year warranty. Installation flexibility is a major advantage: the 1.5 inch profile installs over solid decking with a minimum slope of 2:12, while the 2 inch version supports open framing, steel decking, and insulated assemblies, functioning down to 0.5:12 (hot melt required below 3:12). Aesthetic options include Flat, Striated, and Pencil Rib, and the 2 inch panel meets rigorous testing standards such as UL 580 Class 90 Wind Uplift, UL 2218 Class 4 Hail, UL 790 Class A Fire, and multiple ASTM air, water, and structural tests. With both factory-formed and on-site roll-forming options, the Mechanical Lock system offers a robust, high-performance solution for projects requiring superior structural integrity. See the Snow Guards Compatibility Chart for 5280 Metal Supply Mechanical Lock Standing Seam Metal Roofing Panels.
This panel pairs well with a wide selection of our snow retention products. Adhesive-mounted polycarbonate guards are a strong choice when fully adhered, as this helps prevent moisture from seeping beneath the guard. For areas that see heavier winter loads, larger options such as IceJax II, Snojax II, and SnoBlox Ace offer dependable holding power. In milder climates, smaller models like the SnoBlox Deuce, Ecojax, and IceJax I typically provide adequate control. SnowBreaker and SnowBreaker 3M are useful when the goal is to slow and disperse sliding snow rather than stopping it entirely. The MSR 200 rib profile also works with clamp-on systems, including SnoCleat RC, SnoCleat RCT, SnoBar, and ColorBar, all of which secure using standard SnoBar clamps or RoofClamp hardware. Roofs made from softer metals, such as aluminum, may require additional rows of rail to ensure proper stability.
5280 Metal Supply's Compatibility Chart for Snow Guards
| Nail Strip Panels | Snap Lock Panels | Mechanical Lock Panels | |
|---|---|---|---|
 Ecojax |
YES | YES | YES |
 IceJax I |
YES | YES | YES |
 IceJax II |
YES | YES | YES |
 SnoBlox Deuce |
YES | YES | YES |
 Ace |
YES | YES | YES |
 Snojax II |
YES | YES | YES |
 SnowBreaker |
YES | YES | YES |
 SnoBar |
NO | YES | YES |
 ColorBar |
NO | YES | YES |
 SnoBar RCB-3 |
NO | YES | YES |
 ColorBar RCB-3 |
NO | YES | YES |
 2 Bar SnoBar |
NO | YES | YES |
 2 Bar ColorBar |
NO | YES | YES |
 SnoCleat RC |
NO | YES | YES |
 SnoCleat RCT |
NO | YES | YES |
Considerations for Adding Snow Guards to Standing Seam Roofs by 5280 Metal Supply
Why should I test-fit sample snow guards before installation?
Ordering individual samples from our site lets installers place them on the roof to check alignment and sizing firsthand. This step verifies overall compatibility before purchasing a full system, and following the manufacturer’s instructions helps maintain warranty coverage.
Which snow-load requirements apply in my local area?
Local building codes outline the minimum load ratings your snow-retention layout must meet. Pad-style guards generally handle up to about 45 pounds per square foot. At the same time, regions with heavier winter conditions require stronger rail-style systems to satisfy those requirements.
How should my snow guards be adjusted for complex roof features?
Areas such as valleys, pitch transitions, and other architectural changes often need layout modifications. Correct positioning in these spots is key to keeping the system performing reliably and preventing future issues.
Which snow-retention options work best for unusual roof shapes?
Curved sections, steep slopes, and other nonstandard roof designs often benefit from snow-retention systems built to match those unique contours. Your roofing supplier can recommend products suited for these specialized configurations.
When is the right weather window for me to install adhesive-mounted guards?
Only install adhesive-mounted guards when temperatures remain above 50°F for a full 28 days. The adhesive becomes moisture-resistant after about a day, but it takes about 4 weeks to reach full strength. Avoid using Surebond SB-190 on copper, galvanized steel, Galvalume, or lead.
How can I confirm your snow guards fit my roof profile?
Choose guards that correspond to your roof panel’s exact shape and material. Using our compatibility charts helps prevent mismatched components and supports long-term system reliability.
Conclusion
From the earliest planning conversations through the final installation steps, our team stays committed to providing steady, reliable support. Whether you reach out by phone, email, or through our online platform, you can expect guidance tailored to your project so you can move forward with confidence. To simplify product selection, we offer a detailed Snow Guard Buyer's Guide and a Best Practices manual that highlight key recommendations from industry experts. These tools help you avoid common mistakes and approach your installation with clarity. Paired with straightforward instructions, dependable products, and responsive customer service, our goal is to ensure your snow-retention system performs exactly the way it should. Every interaction reflects our dedication to safety, integrity, and consistent, trustworthy assistance.
Do you have a metal roof from a different manufacturer?
Visit our "Snow Guard Compatibility by Roof Manufacturer" resource page for detailed information on which snow guards and snow retention systems are compatible with your metal roof.
