Snow Retention Solutions for Freedom Metal's Standing Seam Roofs
Posted by Derek Gamble - SnoBlox-Snojax Specialist on Mar 2nd 2026
See the Snow Guards Compatibility Chart for Freedom Metals Standing Seam Metal Roofing Panels.
Which snow guard systems are best suited for Freedom Metal's standing seam panels?
Selecting the right snow retention system for these standing seam profiles starts with understanding how the roof reacts to winter weather.
Standing seam metal roofing delivers a crisp, modern look and dependable protection. Still, its smooth finish allows snow and ice to slide off in large sheets. The industry calls these sudden releases roof avalanches, and they can damage anything below or put people at risk. Snow guards and rail systems slow this movement or hold it in place, and the best performance comes from choosing products that match the panel's geometry and fastening style. Because concealed-fastener panels require solutions tailored to their exact profile, choosing the right system is critical to long-term safety. This blog outlines the snow guard options that pair well with Freedom Metal's standing seam panels so you can choose the right setup for your project.
About Freedom Metals
Freedom Metal began in 1995 when Matthew Will, then 25, purchased a small metal roofing shop near Berlin, Pennsylvania. He ran the entire operation himself inside a 3,500-square-foot building with older equipment until rapid growth pushed the company to move to Roaring Spring in 1999. The new location created room for expansion and set the stage for steady progress. Over the next several years, the company grew through the usual challenges while adding new capabilities. The early 2000s marked the launch of Freedom Express, its trucking division, and in 2011, the company opened a second retail store in Ridgeley, West Virginia, which continues to perform well. By 2017, Freedom Metal reached another milestone, moving into a 20,000-square-foot facility with modern machinery. Today, the company manufactures a wide range of products, including residential siding panels, interior trim, and custom commercial panels for schools, hospitals, and other institutions. A third retail location in Shamong, New Jersey, is underway, extending the company's reach across the Mid-Atlantic. What began as a small, determined operation has grown into a regional leader in metal roofing and siding, still driven by the same entrepreneurial mindset that shaped its early years.
1-Inch Snap Lock Panels

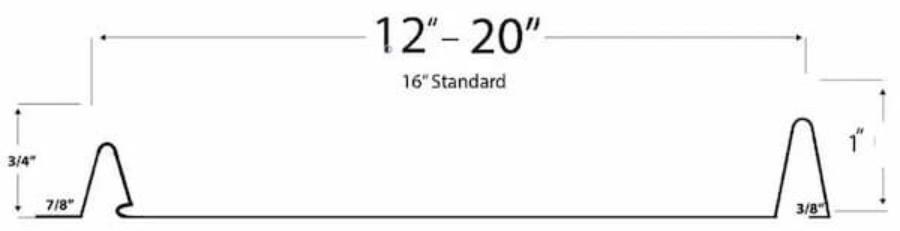

Freedom Metal’s 1 Inch Nailstrip Snap Lock Panels offer a straightforward, durable option for residential roofing. These panels come in 24- or 26-gauge steel and feature either SMP or Fluropon (PVDF) coatings for long-term color stability. The hidden-fastener design removes the need for clips, creating a clean appearance and speeding up installation. Each panel comes in widths from 12 to 20 inches, with the 16-inch width option being the most common, and customers can choose striations or pencil ribs to reduce oil canning. Contractors can install this system on slopes as low as 1/12 when mounted over purlins spaced 12 inches apart, giving it flexibility for both low-slope and traditional residential roofs. Its strength and simple installation make it a favorite among installers and homeowners. See the Snow Guards Compatibility Chart for Freedom Metals 1-Inch Snap Lock Standing Seam Metal Roofing Panels.
The short tapered seam on this panel prevents it from working with our SnoCleat RC, SnoCleat RCT, SnoBar, or ColorBar systems. It does, however, pair well with adhesive-mounted polycarbonate pad-style guards. Larger models such as IceJax II, Snojax II, and SnoBlox Ace handle heavier snow loads. Use smaller guards such as the Deuce, EcoJax, and IceJax I for lighter conditions. Customers who want controlled shedding instead of full retention can use SnowBreaker or SnowBreaker 3M to break up sliding snow. Apply a heavier adhesive layer to fill striation gaps and block moisture that could freeze and weaken the bond.
1.5 Inch Snap Lock Panels

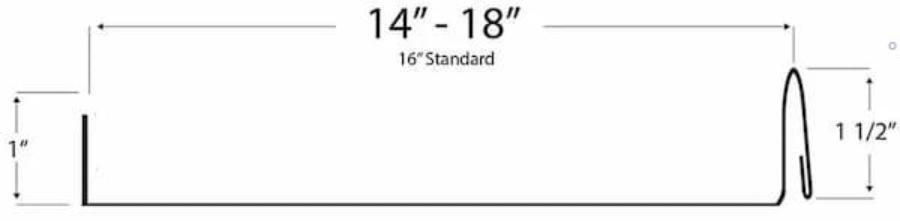

Freedom Metal’s 1.5 Inch Snap Lock Panels bring strength, clean lines, and flexibility to standing seam projects. This panel is available in 14 to 18 inch rib spacing, with 16 inch being the most common. Available in 24- and 26-gauge steel with SMP or Fluropon (PVDF) finishes, these panels lock together with clips that keep fasteners hidden and maintain a tight weather seal. Installers achieve the best results on a 2/12 pitch or greater over a solid deck at least 7/8 inch thick. The finished roof looks refined, sheds weather efficiently, and provides a stable, non-penetrating surface for safe work. See the Snow Guards Compatibility Chart for Freedom Metals 1,5-Inch Snap Lock Standing Seam Metal Roofing Panels.
This profile supports a wide range of our snow retention options. Adhesive-mounted polycarbonate guards perform well when installers apply full adhesive coverage that blocks moisture from getting underneath. Larger guards such as IceJax II, Snojax II, and SnoBlox Ace offer strong performance in heavy-snow regions. Smaller guards like the SnoBlox Deuce, EcoJax, and IceJax I work well in lighter climates. For controlled shedding, SnowBreaker and SnowBreaker 3M help slow and disperse sliding snow. The rib shape also accepts clamp-on systems such as SnoCleat RC, SnoCleat RCT, SnoBar, and ColorBar, which attach with standard SnoBar clamps or RoofClamp hardware. Roofs built from softer metals, such as aluminum, may require additional rail rows for proper reinforcement.
1.75 Inch Snap Lock Panels

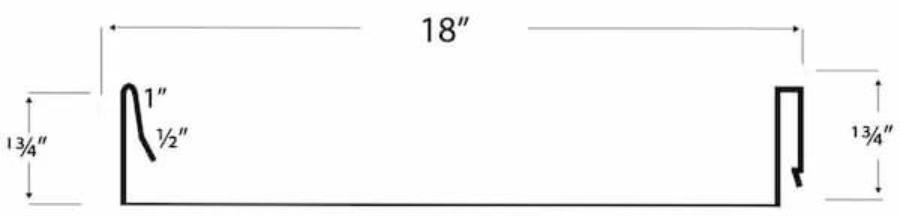

Freedom Metal’s 1.75 Inch Snap Lock Panel builds on the strengths of the 1.75-inch system with added rigidity and broader application. Manufactured from 24-gauge steel, this panel is available in Galvalume or Fluoropon (PVDF) finishes for long-lasting durability and color performance. The concealed-fastener design keeps the surface smooth, while clips secure the seams for reliable attachment. With an 18-inch width and a 1.75-inch rib height, the panel offers increased structural strength, making it a solid choice for high-wind regions or wider purlin spans. Installers can mount it over solid decking or on purlins spaced up to 4 feet apart while maintaining a clean standing seam appearance. It performs well on slopes as low as 1/12, and visual options such as striations, pencil ribs, or a crinkle finish help reduce oil canning and keep the roof looking sharp for years. See the Snow Guards Compatibility Chart for Freedom Metals 1.75-Inch Snap Lock Standing Seam Metal Roofing Panels.
This panel works with many of our snow retention solutions. Adhesive-mounted polycarbonate guards perform reliably when fully adhered, preventing moisture from collecting beneath the guard. In heavier snow regions, larger models like IceJax II, Snojax II, and SnoBlox Ace provide strong holding power. For lighter snowfall, smaller guards such as the SnoBlox Deuce, EcoJax, and IceJax I offer suitable protection. SnowBreaker and SnowBreaker 3M remain good choices for controlled shedding. The rib profile also supports clamp-on systems, including SnoCleat RC, SnoCleat RCT, SnoBar, and ColorBar, which attach with standard SnoBar clamps or RoofClamp hardware. Softer metals, such as aluminum, may require additional rail rows to maintain proper support.
Freedom Metal's Compatibility Chart for Snow Guards
| 1 Inch Snap Lock Panel | 1.5 Inch Snap Lock Panel | 1.75 Inch Snap Lock Panel | |
|---|---|---|---|
 Ecojax |
YES | YES | YES |
 IceJax I |
YES | YES | YES |
 IceJax II |
YES | YES | YES |
 SnoBlox Deuce |
YES | YES | YES |
 Ace |
YES | YES | YES |
 Snojax II |
YES | YES | YES |
 SnowBreaker |
YES | YES | YES |
 SnoBar |
NO | YES | YES |
 ColorBar |
NO | YES | YES |
 SnoBar RCB-3 |
NO | YES | YES |
 ColorBar RCB-3 |
NO | YES | YES |
 2 Bar SnoBar |
NO | YES | YES |
 2 Bar ColorBar |
NO | YES | YES |
 SnoCleat RC |
NO | YES | YES |
 SnoCleat RCT |
NO | YES | YES |
Considerations for Adding Snow Guards to Standing Seam Roofs by Freedom Metals
Which snow-retention options work best for unusual roof shapes?
Roofs with sharp curves, steep pitches, or other nonstandard contours often call for systems designed to match those unique profiles. Your roofing supplier can guide you toward products built specifically for these challenging layouts.
How can I confirm your snow guards fit my roof profile?
Choose guards that match the precise geometry and material of your roof panels. Our compatibility charts help you avoid mismatched parts and support dependable long-term performance.
When is the right weather window for me to install adhesive-mounted guards?
Only install adhesive-mounted guards when temperatures remain above 50°F for a full 28 days. The adhesive resists moisture after about 1 day, but it takes about 4 weeks to reach full cure. Avoid using Surebond SB-190 on copper, galvanized steel, Galvalume, or lead surfaces.
How should my snow guards be adjusted for complex roof features?
Transitions such as valleys, pitch breaks, and other architectural shifts often require layout tweaks. Correct placement in these areas keeps the system working as intended and helps prevent future issues.
Why should I test-fit sample snow guards before installation?
Ordering a few samples lets installers place them directly on the roof to verify alignment and sizing in real conditions. This simple step confirms proper fit before purchasing a full system, and following the manufacturer’s instructions helps maintain warranty coverage.
Which snow-load requirements apply in my local area?
Local building codes define the minimum load ratings your snow-retention plan must satisfy. Pad-style guards usually support around 45 pounds per square foot. At the same time, regions with heavier snowfall often require stronger rail-style systems to meet those demands.
Conclusion
From the first planning conversation through the final installation steps, our team stays focused on providing steady, reliable support. Whether you reach out by phone, email, or through our online platform, you receive guidance tailored to your project so you can move forward with confidence. To simplify product selection, we offer a detailed Snow Guard Buyer’s Guide and a Best Practices manual filled with insights from experienced professionals. These tools help you avoid common mistakes and approach your installation with clarity. With straightforward instructions, dependable products, and responsive customer service, we work to ensure your snow retention system performs exactly as intended. Every interaction reflects our commitment to safety, integrity, and consistent, trustworthy assistance.
Do you have a metal roof from a different manufacturer?
Visit our "Snow Guard Compatibility by Roof Manufacturer" resource page for detailed information on which snow guards and snow retention systems are compatible with your metal roof.
Disclaimer
The views, recommendations, and information presented in this blog are solely those of the author and do not necessarily reflect the opinions or positions of the featured panel manufacturer, its brands, subsidiaries, or parent companies. Customers are strongly encouraged to reach out directly to the roof panel manufacturer for inquiries regarding snow guard compatibility with their products, as well as to address any potential warranty issues that may arise following the installation of our products.
