Posted by Derek Gamble - SnoBlox-Snojax Specialist on Apr 15th 2026
See the Snow Guards Compatibility Chart for Pacific Building System Standing Seam Metal Roofing Panels.
⚡ Quick Compatibility Summary
Use this guide for instant identification. See the full matrix below for specific models.
- SSQ-275 Standing Seam Panel: Fully compatible with adhesive-mounted snow guards, clamp-on rail systems, and SnoCleat attachment options.
- SSR-218 Standing Seam Panel: Fully compatible with adhesive-mounted snow guards, clamp-on rail systems, and SnoCleat attachment options.
- Adhesive-Mounted Options: EcoJax, IceJax I, IceJax II, SnoBlox Deuce, SnoBlox Ace, SnoJax II, SnowBreaker, and SnowBreaker 3M all work with these panel profiles when installed correctly.
- Clamp-On Rail Systems: SnoBar, ColorBar, 2 Bar SnoBar, 2 Bar ColorBar, SnoCleat RC, SnoCleat RCT, SnoBar RCB-3, and ColorBar RCB-3 are all compatible with both Pacific Building Systems standing seam panels.
- Material Warning: Aluminum panels may require additional rows to distribute snow loads properly.
Never screw into a standing seam roof. Use clamp-on or adhesive systems only. See the full compatibility chart ↓
Which snow guard systems are best suited for Pacific Building System's standing seam panels?
Choosing the right snow retention system for Pacific Building System's standing seam panels starts with understanding how these roofs behave in winter conditions.
Their smooth surface and hidden fasteners allow snow and ice to slide off in large sheets, which can lead to sudden releases that behave like roof avalanches. These events can damage gutters, harm landscaping, or create hazards for people and pets below. Snow guards and rail systems help slow or stop this movement. Still, installers must match them to the specific panel profile and attachment method for proper performance. Because standing seam roofs depend on components designed for their exact geometry, selecting compatible products is essential for long-term performance. This blog outlines the snow retention solutions that pair well with Pacific Building System's standing seam panels so you can make an informed choice for your project.

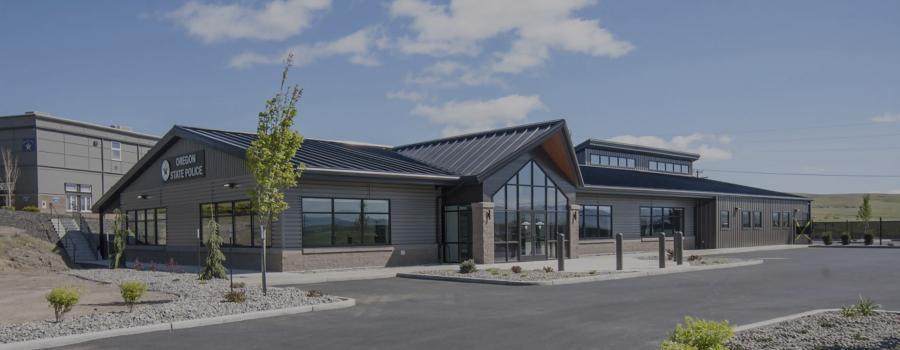

About Pacific Building Systems
Pacific Building Systems is a fourth-generation, family-owned steel building manufacturer based in Woodburn, Oregon. The company began in 1962 as a small operation serving local agricultural and community needs. Over the years, it has expanded into a respected provider of custom pre-engineered metal building systems, delivering more than ten thousand structures throughout the Pacific Northwest and beyond. PBS offers comprehensive in-house services, including design, engineering, manufacturing, and shipping, enabling it to support a wide range of commercial, industrial, agricultural, aviation, and government projects. The company prioritizes excellent service and fully integrated, high-quality steel building solutions, with a strong focus on customer relationships, innovation, and durable, community-centered construction.

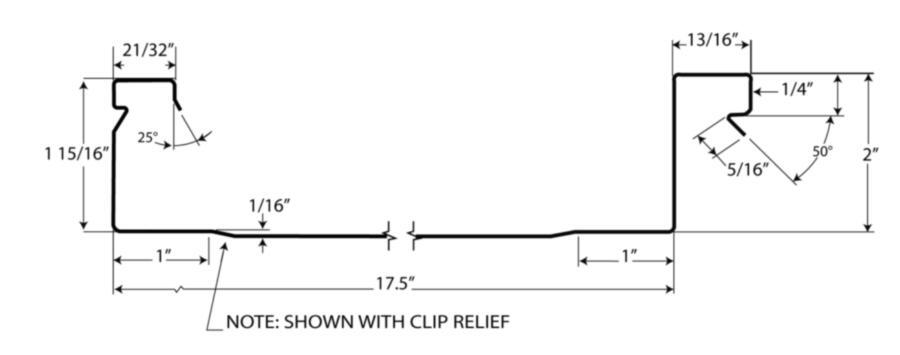

SSQ-275 Standing Seam Panel
The SSQ-275 is the primary standing seam roofing panel offered by Pacific Building Systems, designed to balance durability, versatility, and a clean architectural appearance. It employs a concealed clip system and a snap‑lock profile, and installers can mechanically seam it for increased weather resistance. With a seam height of 2 inches and a coverage width of 17.5 inches, the SSQ-275 performs well on low-slope roofs down to 1/2:12. It is often roll-formed on-site to accommodate long panel lengths, making it a strong choice for commercial, industrial, and agricultural buildings where durability and thermal movement are important considerations. See the Snow Guards Compatibility Chart for Pacific Building System SSQ-275 Standing Seam Metal Roofing Panels.
This panel works with a wide range of our snow retention products. Adhesive-mounted polycarbonate guards perform well when installed correctly, creating a reliable, watertight bond. In areas with significant snowfall, higher-capacity models such as IceJax II, Snojax II, and SnoBlox Ace provide added holding strength. For lighter snow loads, smaller options such as the SnoBlox Deuce, EcoJax, and IceJax I are typically sufficient. If the goal is to encourage controlled snow release rather than full retention, SnowBreaker and SnowBreaker 3M are built specifically for that purpose. The seam geometry accommodates clamp‑on systems such as SnoCleat RC, SnoCleat RCT, SnoBar, and ColorBar, and installers attach them with standard SnoBar clamps or RoofClamp hardware. Aluminum roofs may require additional rows to properly distribute loads.

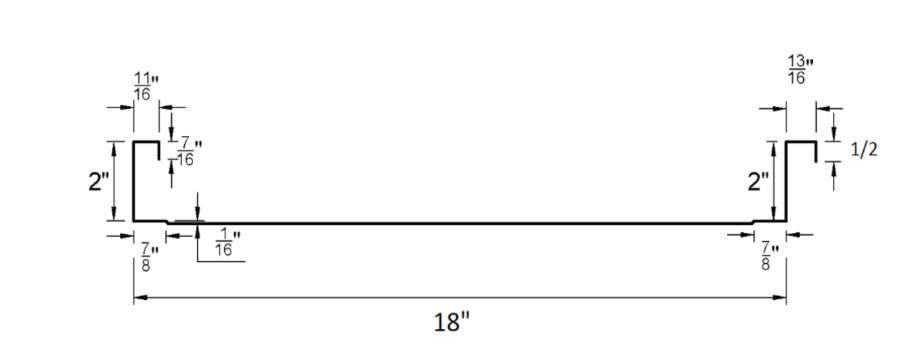

SSR-218 Standing Seam Panel
The SSR-218 is a mechanically seamed standing seam panel built for maximum strength and long-term weather resistance. It features an 18-inch coverage width and a 2-inch tall seam, using a concealed clip attachment that requires mechanical seaming at either 90 degrees or 180 degrees. This process forms a tightly locked joint that maintains excellent performance on low‑slope roofs down to 1/2:12. Available in heavier gauges, such as 24- and 22-gauge steel, the SSR-218 is well-suited for structural roofing applications where wind-uplift resistance, water-tightness, and long-term durability are critical. Specifiers frequently choose it for demanding commercial and industrial environments where performance is critical. See the Snow Guards Compatibility Chart for Pacific Building System SSR-218 Standing Seam Metal Roofing Panels.
This panel is compatible with many of our snow retention solutions. Adhesive-mounted polycarbonate guards can be effective when installed with proper bonding techniques that prevent moisture intrusion. In regions with heavy snowfall, larger systems like IceJax II, Snojax II, and SnoBlox Ace offer the strength needed to manage increased loads. For lighter snow conditions, smaller guards such as SnoBlox Deuce, EcoJax, and IceJax I provide adequate performance. When the goal is to break up and release snow gradually rather than hold it in place, SnowBreaker and SnowBreaker 3M are suitable choices. The seam design accommodates clamp‑on systems such as SnoCleat RC, SnoCleat RCT, SnoBar, and ColorBar, and installers attach them using standard SnoBar clamps or RoofClamp hardware. On aluminum panels, you may require additional rows to ensure proper load distribution.
Pacific Building Systems Compatibility Chart for Snow Guards
| SSQ-275 Panel | SSR-218 Panel | |
|---|---|---|
 EcoJax |
YES | YES |
 IceJax I |
YES | YES |
 IceJax II |
YES | YES |
 SnoBlox Deuce |
YES | YES |
 SnoBlox Ace |
YES | YES |
 SnoJax II |
YES | YES |
 SnowBreaker |
YES | YES |
 SnoBar |
YES | YES |
 ColorBar |
YES | YES |
 SnoBar RCB-3 |
YES | YES |
 ColorBar RCB-3 |
YES | YES |
 2 Bar SnoBar |
YES | YES |
 2 Bar ColorBar |
YES | YES |
 SnoCleat RC |
YES | YES |
 SnoCleat RCT |
YES | YES |
Considerations for Adding Snow Guards to Standing Seam Roofs by Pacific Building Systems
Which snow-load requirements apply in my local area?
Local and state codes determine the minimum load rating your snow retention system must meet. Our pad-style guards are designed for ground snow loads up to 45 pounds per square foot. At the same time, areas with heavier accumulation often require the added strength of rail-style systems.
Why should I test-fit sample snow guards before installation?
Placing a few guards on the roof in advance allows installers to verify spacing, alignment, and the seating of each guard on the panel. This quick check confirms the chosen model is appropriate before ordering in bulk and helps maintain warranty compliance.
How can I confirm your snow guards fit my roof profile?
Select guards that match the exact dimensions and material of your roof panels. Reviewing compatibility charts and technical specifications ensures a proper fit and dependable long-term performance.
When is the right weather window for me to install adhesive-mounted guards?
Only install adhesive-mounted guards when temperatures stay above 50°F for a continuous 28-day period. Although the adhesive becomes moisture-resistant after about a day, it takes about 4 weeks to cure fully.
Which snow-retention options work best for unusual roof shapes?
Roofs with sharp angles, curved areas, or uncommon panel designs often need systems tailored to those unique geometries. Your panel manufacturer can help identify products engineered to work with these challenging configurations.
Conclusion
From the first discussion about your project through the final stages of installation, our team remains dedicated to delivering steady, dependable support. Whether you contact us by phone, email, or through our online platform, you can count on guidance tailored to your specific needs so you can move forward with confidence. To make product selection easier, we provide a comprehensive Snow Guard Buyer's Guide and a Best Practices manual, both created with input from seasoned industry experts. These resources help you avoid common errors and approach your installation with clarity and accuracy. By pairing straightforward instructions with reliable products and responsive customer service, we work to ensure your snow retention system performs exactly as it should. Every step reflects our commitment to safety, integrity, and consistent, trustworthy support.
Do you have a metal roof from a different manufacturer?
Visit our "Snow Guard Compatibility by Roof Manufacturer" resource page for detailed information on which snow guards and snow retention systems are compatible with your metal roof.
Compatibility Guidance Note
The compatibility information presented in this guide is based on SnoBlox-Snojax product testing and field experience with Pacific Building Systems metal roof panel profiles. Panel manufacturers periodically update profile specifications, and individual project variables including seam condition, coating type, and installation method can affect outcomes. Customers are encouraged to confirm current panel specifications directly with Pacific Building Systems and to contact SnoBlox-Snojax with project-specific questions before ordering.
