Snow Retention Solutions for Master Steel Roofing's Standing Seam Roofs
Posted by Derek Gamble - SnoBlox-Snojax Specialist on Feb 4th 2026
See the Snow Guards Compatibility Chart for Master Steel Roofing Standing Seam Metal Roofing Panels.
Which snow guard systems are best suited for Master Steel Roofing’s standing seam panels?
Choosing the right snow guard system for Master Steel Roofing’s standing seam panels begins with understanding how these roofs respond to winter weather.
Standing seam metal roofs are known for their sleek appearance and long service life. Still, in snowy regions, they also introduce unique safety considerations. Snow and ice can slide off in large sheets, creating what is commonly called a roof avalanche. These sudden releases can damage vehicles, landscaping, and building features, and they can endanger anyone walking below. To prevent these hazards, installers use snow guards and bar-style retention systems designed to work with the panel's profile and fastening method. Because concealed-fastener panels require solutions that match their exact shape, selecting the right snow retention system is essential for reliable performance. This blog outlines the snow guard products that work best with Master Steel Roofing’s standing seam panels so you can confidently choose the right setup for your project.
About Master Steel Roofing
Master Steel Roofing began in 1998 when founder Wayne Wingard launched WC Construction, a general contracting business. As demand for architectural steel roofing grew, Wayne shifted the company’s focus and re-branded it as Master Steel Roofing (MSR) in 2004. Since then, MSR has become a respected manufacturer of standing-seam metal roofing systems, known for quality craftsmanship and dependable service. What started in Wayne's home shop has expanded into a full-scale operation with modern production facilities, experienced installation crews, and a knowledgeable office staff. This growth allows MSR to maintain strict quality control while still offering the personalized service of a smaller company. Based in North Central Indiana, MSR supplies roofing panels nationwide and provides installation services across a wide region, from western to eastern Indiana, including South Bend, Elkhart, and Indianapolis, and extending into Michigan markets such as Grand Rapids.

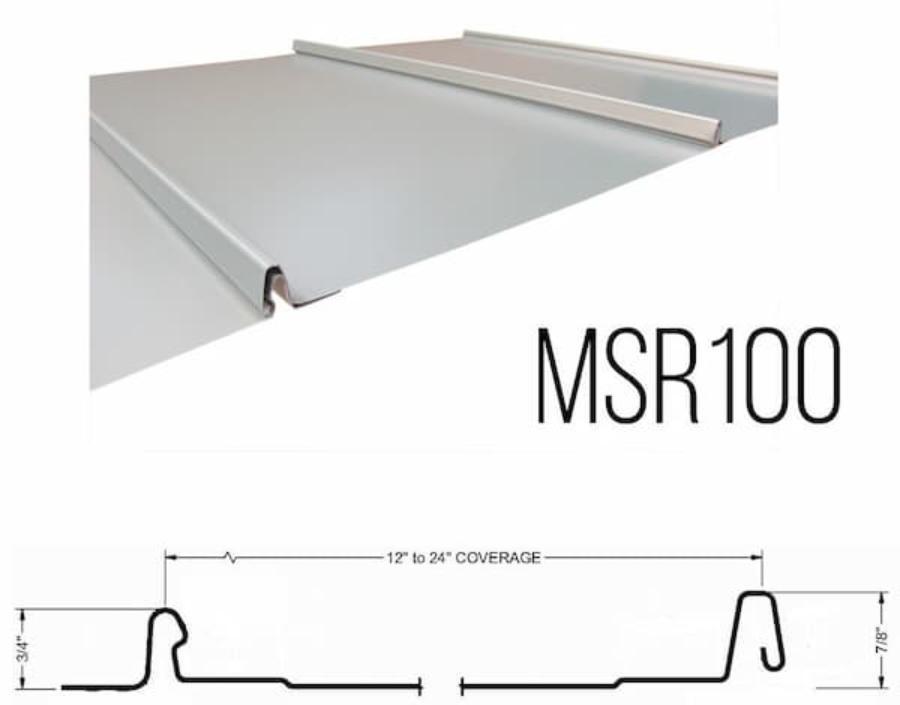

MSR 100 Snap-Lock Nailstrip Panels
The MSR 100 Snap-Lock Nailstrip panel system blends straightforward installation with strong visual appeal, making it a go-to option for homes and light commercial buildings. It features a 1-inch snap-lock seam and an integrated nailstrip flange, eliminating the need for separate clips. Designed for roof slopes of 3:12 or greater, each panel is secured through the slotted flange and hidden beneath the next panel's overlap, protecting fasteners from the elements. The MSR 100 system is available in 22-, 24-, and 26-gauge steel, as well as copper and aluminum, and in widths of 12 to 24 inches. With 34 colors and finish options, including smooth and striated textures, customers can tailor the look to match any architectural style. These panels are engineered for performance, offering UL Class 90 wind uplift resistance, a Class A fire rating, and a 30-year non-prorated warranty. They perform best when installed over plywood or OSB decking, providing a secure and long-lasting roofing solution. See the Snow Guards Compatibility Chart for Master Steel Roofing MSR 100 Snap-Lock Nailstrip Standing Seam Metal Roofing Panels.
Because this panel uses a short tapered seam, it is not compatible with SnoCleat RC, SnoCleat RCT, SnoBar, or ColorBar systems. It does, however, work well with all adhesive-mounted polycarbonate pad-style snow guards, depending on the panel's rib or striation pattern. Larger options such as IceJax II, Snojax II, and SnoBlox Ace are suitable for higher snow loads. At the same time, smaller guards like the Deuce, Ecojax, and IceJax I are ideal for less extreme conditions. For customers who prefer to slow and break up sliding snow rather than hold it in place, SnowBreaker and SnowBreaker 3M are effective choices. We recommend a heavier adhesive application to fill striation gaps and prevent moisture intrusion, which can freeze and compromise the bond.
MSR 150 Snap-Lock Nailstrip Panels
The MSR 150 Snap-Lock Nailstrip panel system offers increased strength and design flexibility, making it well-suited for residential, commercial, and light industrial projects. With a 1.5-inch snap-lock seam and integrated nailstrip flange, the system installs efficiently without separate clips. Panels are fastened through the slotted flange and concealed beneath the overlapping panel, creating a weather-tight assembly. Designed for roof pitches of 3:12 or greater, the MSR 150 is available in 22-, 24-, and 26-gauge steel, as well as copper and aluminum. Customers can choose between 15-inch and 19-inch widths and select from smooth or striated finishes. A wide range of painted colors ensures compatibility with many architectural styles. Like the MSR 100, these panels carry a UL Class 90 wind uplift rating, a Class A fire rating, and a 30-year non-prorated warranty. They perform best when installed over plywood or OSB decking, providing a durable, visually appealing roofing solution. See the Snow Guards Compatibility Chart for Master Steel Roofing MSR 150 Snap-Lock Nailstrip Standing Seam Metal Roofing Panels.
This panel is compatible with a wide range of our snow retention products. Adhesive-mounted polycarbonate guards are effective when installed with proper adhesive coverage to prevent moisture from collecting beneath the guard. For heavier snow regions, larger guards such as IceJax II, Snojax II, and SnoBlox Ace provide strong holding power. Smaller guards like the SnoBlox Deuce and IceJax I are suitable for moderate snow conditions. For controlled shedding, SnowBreaker and SnowBreaker 3M help slow and disperse sliding snow. The MSR 150’s rib profile also accommodates clamp-on systems, including SnoCleat RC, SnoCleat RCT, SnoBar, and ColorBar, using standard SnoBar clamps or RoofClamp hardware. Softer metals like aluminum may require additional rows of rail to compensate for reduced panel rigidity.

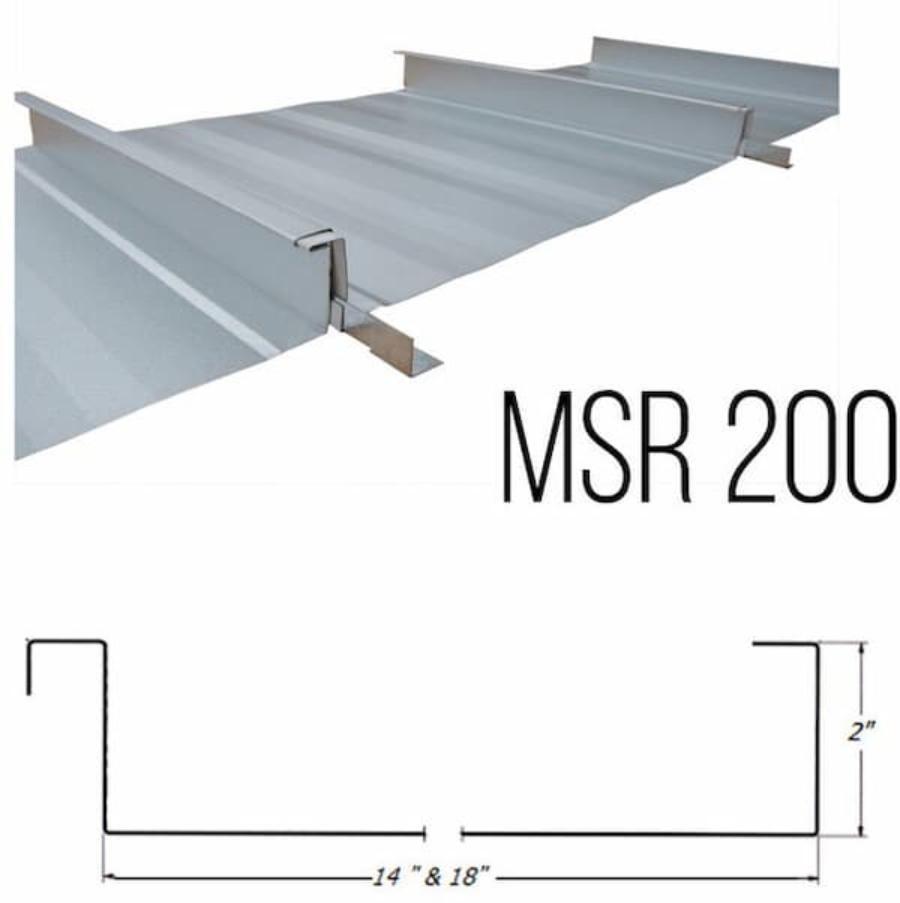

MSR 200 Mechanically Seamed Panels
The MSR 200 panel system is designed for low-slope applications and offers exceptional durability for both commercial and residential buildings. These panels can be used on roof pitches as low as 0.5/12, making them ideal for nearly flat structures. Many installations do not require decking, which adds to their versatility and cost efficiency. Manufactured in 22-, 24-, and 26-gauge painted steel and aluminum, the MSR 200 panels can be produced in continuous lengths up to 250 feet, allowing seamless coverage on large roofs. Panel widths of 14 or 18 inches are available. Finished with high-performance Kynar 500 coatings, they deliver long-term color retention and weather resistance. The system meets UL Class 90 uplift standards, carries a Class A fire rating, and includes a 30-year non-prorated warranty, making it a dependable choice for new builds and re-roofing projects. See the Snow Guards Compatibility Chart for Master Steel Roofing MSR 200 Mechanically Seamed Standing Seam Metal Roofing Panels.
This panel supports a wide variety of our snow retention solutions. Adhesive-mounted polycarbonate guards perform well when installed with proper adhesive coverage to prevent moisture intrusion and refreezing. We recommend larger guards such as IceJax II, Snojax II, and SnoBlox Ace for areas with heavy snowfall. In comparison, smaller guards like the SnoBlox Deuce and IceJax I are suitable for lighter conditions. For controlled shedding, SnowBreaker and SnowBreaker 3M help slow and disperse snow movement. The MSR 200's rib profile also accommodates clamp-on systems such as SnoCleat RC, SnoCleat RCT, SnoBar, and ColorBar, which attach using standard SnoBar clamps or RoofClamp hardware. Softer metals, including aluminum, may require additional rail rows to ensure proper support and performance.

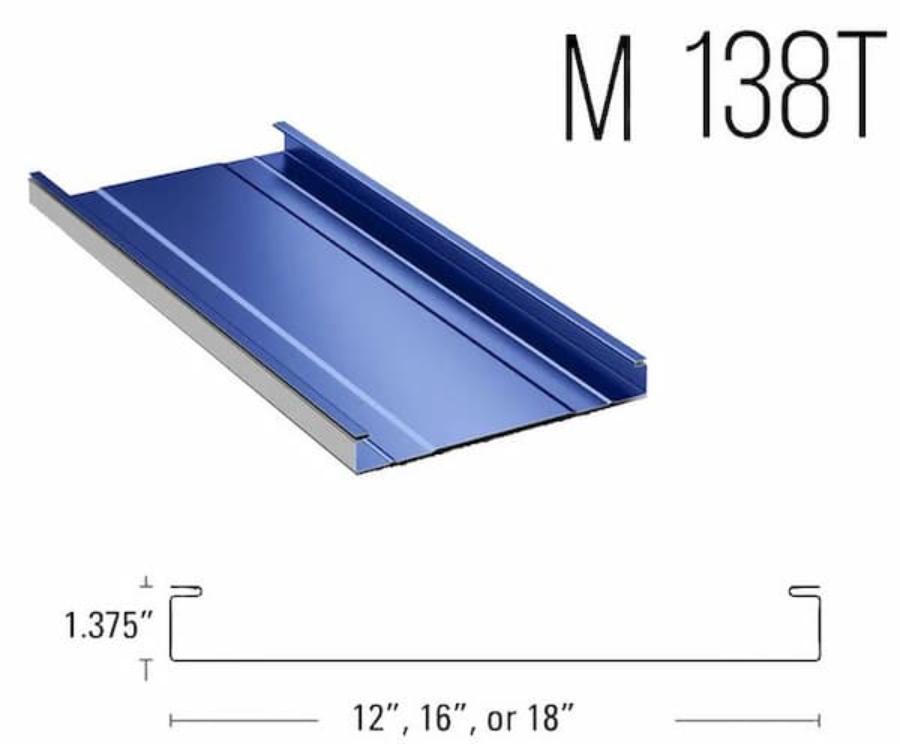

M 138T Panels
The McElroy 138T panel, produced by Master Steel Roofing under McElroy Metal certification, is a highly adaptable standing-seam system suitable for both residential and commercial projects. Designed to perform on roof slopes as low as 1/12, it offers strong versatility for low-pitch applications. Panels can be manufactured in continuous lengths up to 250 feet, reducing the need for horizontal seams on large roofs. Available in 22- or 24-gauge painted steel, with aluminum as an alternative, the 138T comes in 12-, 16-, and 18-inch widths and can be curved for barrel-style designs. Its Kynar 500 finish provides long-lasting color stability and weather resistance. The system meets UL Class 90 uplift standards, carries a Class A fire rating, and includes a 30-year non-prorated warranty, with an optional McElroy Weather-tight Warranty. Replacing individual panels makes long-term maintenance straightforward and cost-effective. See the Snow Guards Compatibility Chart for Master Steel Roofing M 138T Standing Seam Metal Roofing Panels.
The 138T profile supports a wide range of our snow retention systems. Glue-down polycarbonate snow guards work well when installers apply enough adhesive to seal the panel's striations fully. Any gaps can trap meltwater, which may refreeze and weaken the bond. Larger pad-style guards such as IceJax II, Snojax II, and SnoBlox Ace are excellent for higher snow loads, while the SnoBlox Deuce and IceJax I offer smaller footprints. For controlled shedding, SnowBreaker and SnowBreaker 3M help disperse sliding snow. The rib also accepts clamp-on systems, such as SnoCleat RCT, SnoBar, and ColorBar, when paired with the RCB-3 bracket and the aluminum RoofClamp RCT. Although the panel uses a mechanically fastened cap, it only covers the top of the seam and does not interfere with clamp-on hardware. Softer metals such as aluminum or copper may require additional rail rows to compensate for their reduced rigidity. Avoid adhesive‑mounted guards on curved roofs because they require a flat surface; instead, use clamp‑on or rail‑style systems. Standard SnoBar Clamps and RoofClamp RC are incompatible with this panel.

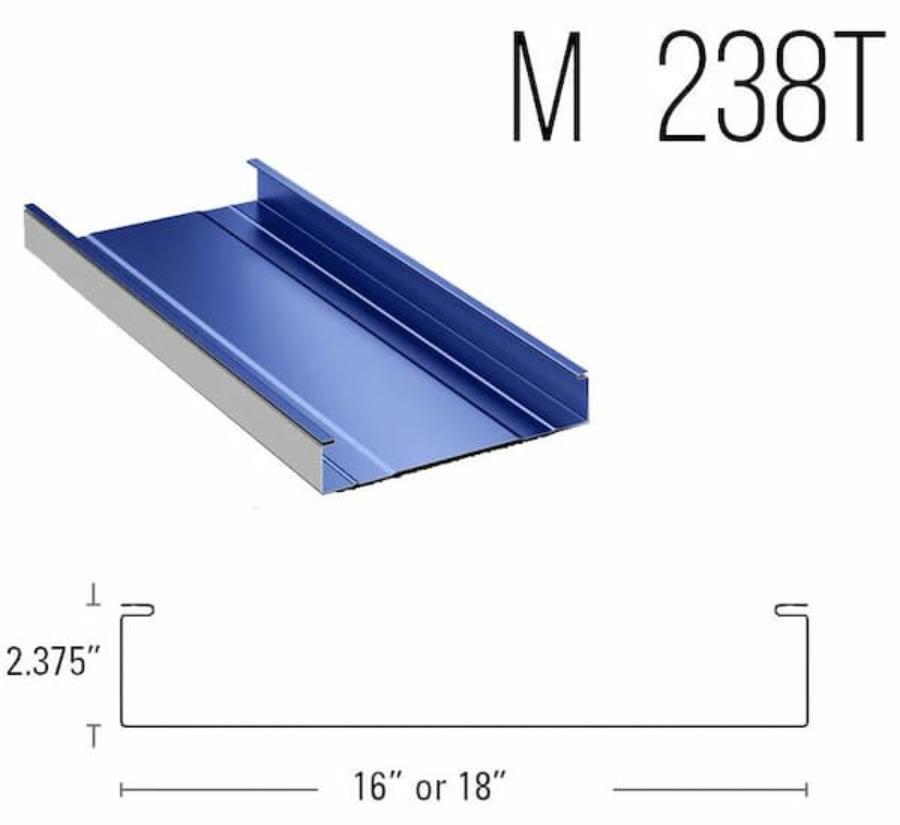

M 238T Panels
The McElroy 238T panel, manufactured by Master Steel Roofing under McElroy Metal certification, is a durable standing seam option designed for low-slope applications down to 0.25/12. Panels can be produced in continuous lengths up to 250 feet, minimizing seams and improving weather resistance. Available in 22- or 24-gauge painted steel, with aluminum options also offered, the 238T comes in 16-, 18-, and 24-inch widths and can be ordered with smooth or striated finishes to reduce oil-canning. The Kynar 500 coating ensures long-term color retention and protection from the elements. The system meets UL Class 90 uplift requirements, carries a Class A fire rating, and includes a 30-year non-prorated warranty, with an optional McElroy Weather-tight Warranty. Individual panel replaceability enhances long-term serviceability. See the Snow Guards Compatibility Chart for Master Steel Roofing M 238T Standing Seam Metal Roofing Panels.
The 238T panel supports many of our snow retention options thanks to its T-style seam and multiple widths. Glue-down polycarbonate guards are compatible, but installers must apply enough adhesive to seal the panel's striations fully. Any unsealed areas can trap meltwater, which may refreeze and cause failure. Larger guards such as IceJax II, Snojax II, and SnoBlox Ace are ideal for heavier snow loads. At the same time, the SnoBlox Deuce and IceJax I offer compact alternatives. For controlled shedding, SnowBreaker and SnowBreaker 3M help slow and distribute sliding snow. The rib also accommodates clamp-on systems, including SnoCleat RCT, SnoBar, and ColorBar, when installed with the RCB-3 bracket and the aluminum RoofClamp RCT. The mechanically fastened cap covers only the top of the seam, leaving the vertical rib accessible for clamp-on attachments. Softer metals like copper or aluminum may require additional rail rows to compensate for reduced strength. Avoid adhesive‑mounted pad‑style guards on curved roofs because they require a flat surface; instead, use clamp‑on or rail systems. Standard SnoBar Clamps and RoofClamp RC are incompatible with this panel.

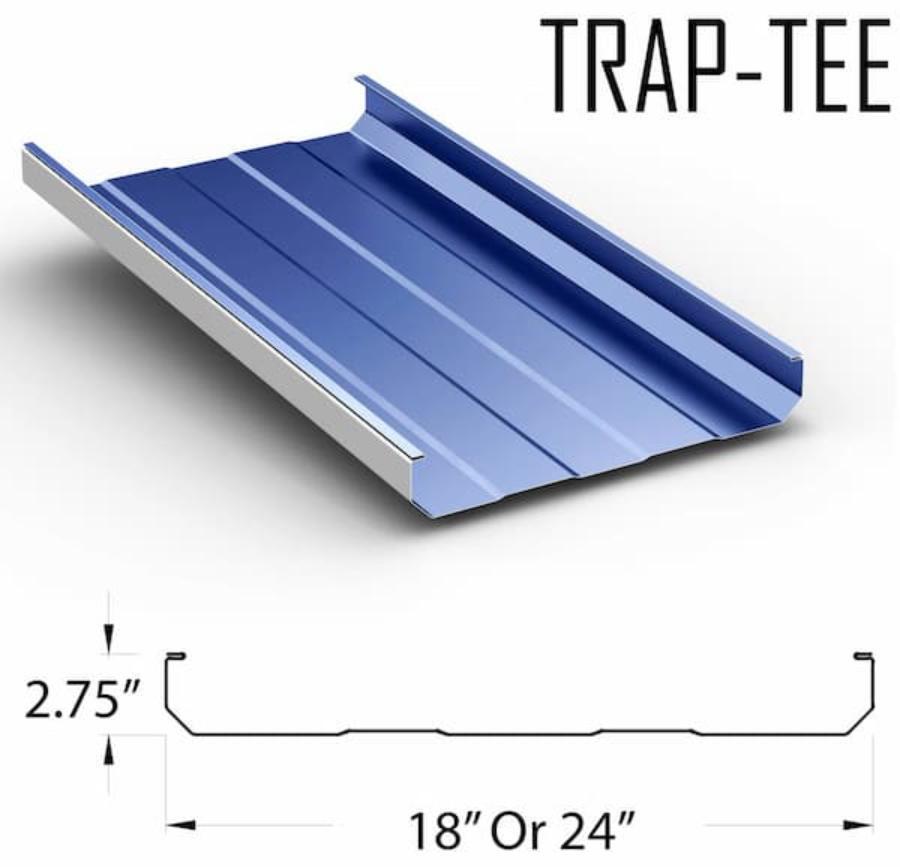

Trap-Tee Panels
The McElroy Trap-Tee panel is a flexible standing-seam roofing system suitable for new construction, tear-off replacements, and recovery applications. With a minimum pitch requirement of 0.25/12, it performs well on low-slope commercial and residential roofs. Master Steel Roofing, certified by McElroy Metal to produce this profile, ensures each panel meets strict durability and performance standards. Trap-Tee panels can be manufactured in single lengths up to 250 feet, reducing seams and improving weather resistance. They are available in 22-, 24-, and 26-gauge painted steel, with aluminum options for projects requiring lighter materials. Widths of 18 and 24 inches, along with smooth or striated finishes, allow customization and help reduce oil-canning. The Kynar 500 finish provides excellent fade resistance and long-term durability. The system carries a UL Class 90 uplift rating, a Class A fire rating, and a 30-year non-prorated warranty, with an optional McElroy Weather-tight Warranty. Individual panel replaceability simplifies long-term maintenance and enhances overall value. See the Snow Guards Compatibility Chart for Master Steel Roofing Trap-Tee Standing Seam Metal Roofing Panels.
Trap-Tee panels pair well with smaller glue-down polycarbonate snow guards such as the SnoBlox Deuce, SnowBreaker, and SnowBreaker 3M. The T-shaped rib also supports clamp-on systems, including the SnoCleat RCT, SnoBar, and ColorBar, when installed with the RCB-3 bracket and aluminum RoofClamp RCT. Although the panel uses a mechanically fastened cap, it only covers the top of the seam, leaving the vertical rib unobstructed for clamp-on snow retention hardware. Standard SnoBar Clamps and RoofClamp RC are incompatible with this panel.
Master Steel Roofing Compatibility Chart for Snow Guards
| MSR 100 Snap-Lock Panel | MSR 150 Snap-Lock Panel | MSR 200 Mechanical Panel | M 138T Panel | M 238T Panel | Trap-Tee Panel | |
|---|---|---|---|---|---|---|
 Ecojax |
YES | YES | YES | YES | YES | YES |
 IceJax I |
YES | YES | YES | YES | YES | YES |
 IceJax II |
YES | YES | YES | YES | YES | YES |
 SnoBlox Deuce |
YES | YES | YES | YES | YES | YES |
 Ace |
YES | YES | YES | YES | YES | YES |
 Snojax II |
YES | YES | YES | YES | YES | YES |
 SnowBreaker |
YES | YES | YES | YES | YES | YES |
 SnoBar |
NO | YES | YES | NO | NO | NO |
 ColorBar |
NO | YES | YES | NO | NO | NO |
 SnoBar RCB-3 |
NO | YES | YES | YES | YES | YES |
 ColorBar RCB-3 |
NO | YES | YES | YES | YES | YES |
 2 Bar SnoBar |
NO | YES | YES | YES | YES | YES |
 2 Bar ColorBar |
NO | YES | YES | YES | YES | YES |
 SnoCleat RC |
NO | YES | YES | NO | NO | NO |
 SnoCleat RCT |
NO | YES | YES | YES | YES | YES |
Considerations for Adding Snow Guards to Standing Seam Roofs by Master Steel Roofing
How can I confirm your snow guards fit my roof profile?
Choose guards that correspond to your roof’s specific panel shape and material. Using our compatibility charts helps avoid pairing the wrong components and supports long-term system reliability.
Which snow-retention options work best for unusual roof shapes?
Roofs with steep pitches, curved sections, or other nonstandard geometries often require snow-retention systems designed to match those unique contours. Your roofing supplier can point you toward the most appropriate products for these situations.
Why should I test-fit sample snow guards before installation?
Ordering individual samples from our website lets installers place guards directly on the roof to check fit. This step helps confirm alignment, sizing, and overall compatibility before committing to a full installation. Always follow the manufacturer’s instructions to maintain warranty coverage.
What snow-load requirements apply in my local area?
Consult your local building regulations to ensure your snow-retention layout meets the required load ratings. Pad-style guards typically support about 45 pounds per square foot. At the same time, areas with heavier snowfall may call for stronger rail-type systems.
How should my snow guards be adjusted for complex roof features?
Valleys, pitch changes, and other architectural transitions often require layout modifications. Correct positioning in these areas is essential for maintaining system performance and preventing future problems.
When is the right weather window for me to install adhesive-mounted guards?
Install adhesive‑mounted guards only when temperatures stay above 50°F for a full 28 days. Although the adhesive becomes moisture-resistant after about a day, it takes about 4 weeks to reach full cure strength. Avoid using Surebond SB-190 on copper, galvanized steel, Galvalume, or lead, as these materials are not approved and may corrode prematurely.
Conclusion
From your earliest planning steps to the final stages of installation, our team provides steady, dependable support every step of the way. No matter how you choose to contact us, by phone, email, or through our website, you'll receive guidance tailored to your specific needs so you can move forward with confidence. To make product selection easier, we provide a comprehensive Snow Guard Buyer's Guide and a Best Practices manual filled with expert insights. These resources help you avoid common pitfalls and approach your installation with clarity and assurance. With straightforward instructions, reliable products, and attentive customer service, we work to ensure your snow-retention system performs exactly as intended. Every interaction reflects our commitment to safety, integrity, and dependable support.
Do you have a metal roof from a different manufacturer?
Visit our "Snow Guard Compatibility by Roof Manufacturer" resource page for detailed information on which snow guards and snow retention systems are compatible with your metal roof.
Disclaimer
The views, recommendations, and information presented in this blog are solely those of the author and do not necessarily reflect the opinions or positions of the featured panel manufacturer, its brands, subsidiaries, or parent companies. Customers are strongly encouraged to reach out directly to the roof panel manufacturer for inquiries regarding snow guard compatibility with their products, as well as to address any potential warranty issues that may arise following the installation of our products.
